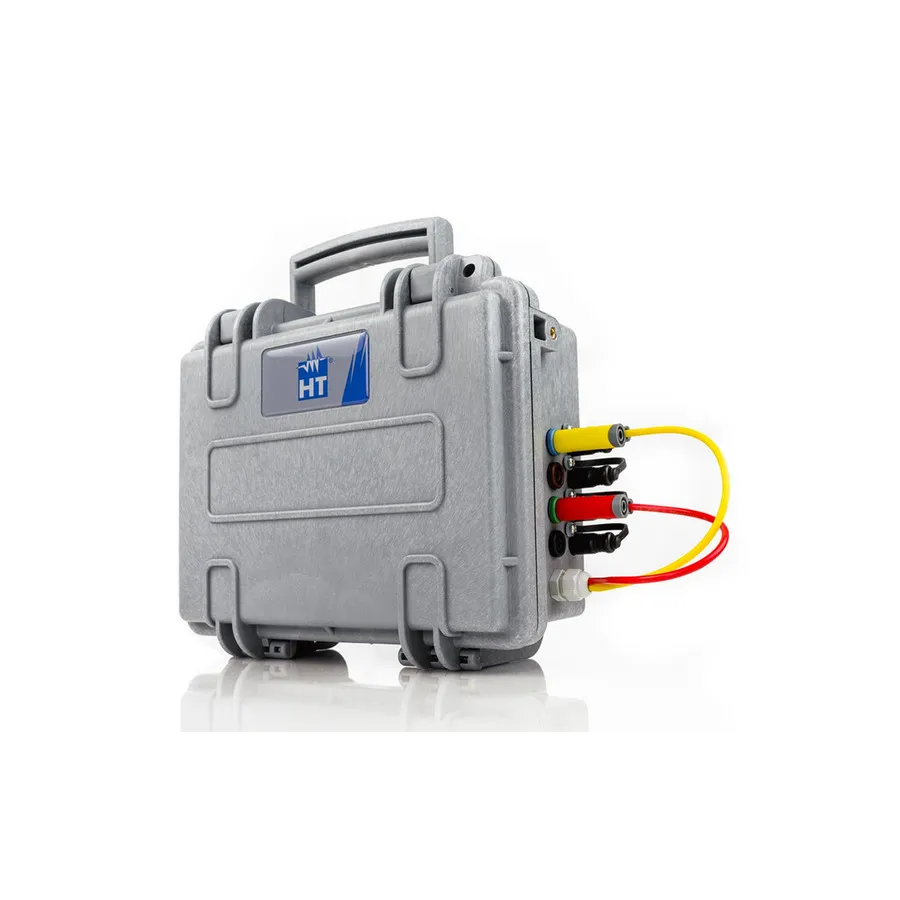

HT Instruments PQA820 Power Quality Analyzer
Request a quote
HT Instruments PQA820 is a self-powered 3-phase power quality analyzer measuring up to 383 parameters with WiFi/USB connectivity, rechargeable battery, and cloud storage.
Product details
| Model | PQA820 |
| Manufacturer | HT Instruments |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The HT Instruments PQA820 is a self-powered power quality analyzer designed for analyzing three-phase and single-phase electrical systems. It draws power directly from the measured mains, eliminating the need for external batteries, while a built-in rechargeable battery ensures continued recording during power interruptions. This analyzer records up to 383 electrical parameters including voltage, current, power, and harmonics, providing comprehensive power quality assessment.
Key Features
- Self-powered from measured mains; no external batteries required
- Built-in rechargeable battery for uninterrupted recording during power loss
- Measures up to 383 electrical parameters (voltage, current, power, harmonics)
- Three-phase and single-phase system analysis capability
- 1000A current measurement capacity
- IP65 rating for durability in varied environmental conditions
- WiFi and USB connectivity for data transfer and remote control
- Drag and drop analysis interface for quick parameter comparison
- Compatible with HTAnalysis App for iOS and Android devices
- HT Cloud integration for online storage and easy data sharing
Applications
- Power quality assessments and diagnostics
- Energy audits and consumption analysis
- Electrical system troubleshooting
- Compliance verification for power standards
Specifications
| Maximum AC Voltage | 415 V |
| Maximum DC Voltage | 415 V |
| Maximum AC Current | 1000 A |
| Maximum DC Current | 1000 A |
| Number of Phases | 3 |
| IP Rating | IP65 |
| Battery Life | 15 hrs. |
| Battery Type | Rechargeable battery LI-ION |
| Display | None |
| Height | 115 mm |
| Includes | Calibration report Quick Guide and Downloadable Manual Soft bag Connector Set Of Cables Standard Clamp Connectors USB A - USB B + downloadable Software |
| Interface | USB, WiFi |
| Operating Temperature | 0 to 40°C |
| Product Type | Power Quality Analyzers |
| Storage Temperature | -10 To 60°C |
