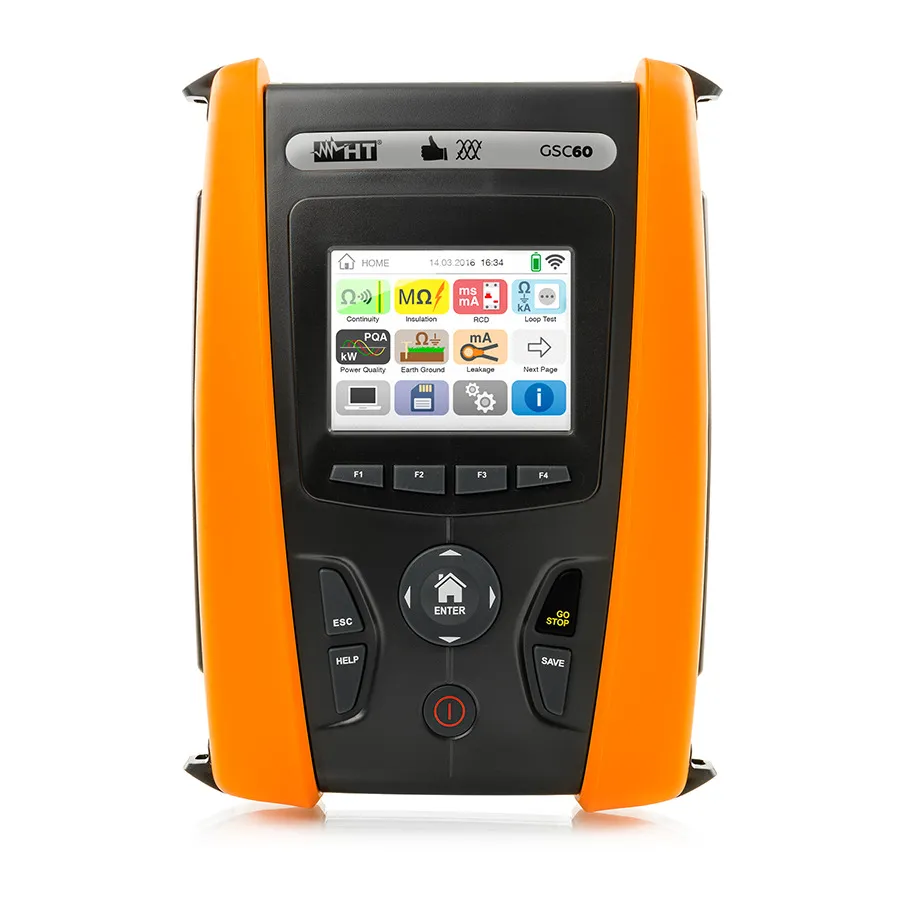

HT Instruments GSC60 Power Quality Analyzer
Request a quote
HT Instruments GSC60 is a portable power quality analyzer and electrical safety tester with three-phase measurement, Wi-Fi, and mobile app integration.
Product details
| Model | GSC60 |
| Manufacturer | HT Instruments |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The HT Instruments GSC60 is a versatile multifunction electrical safety tester and power quality analyzer designed to simplify verification of electrical installations. Built with an intuitive HTOS system, it combines instant visual feedback with flexible data management and seamless connectivity for electricians, installers, and consultants.
Key Features
- Power quality analyzer with three-phase measurement capability
- Electrical safety tester with OK/NOT OK visual feedback
- Intuitive user interface with virtual keyboard for notes and comments
- Wi-Fi connectivity for real-time result transfer to mobile devices
- HTAnalysis App (iOS & Android) for data management and analysis
- Energy consumption analyzer for multi-phase systems
- Ability to attach pictures, videos, and voice notes to measurements
- HT Cloud synchronization for remote team collaboration
Applications
- Electrical installation verification and compliance testing
- Power quality measurements in three-phase systems
- Energy consumption analysis
- Field measurements with portable design
Specifications
| Maximum DC Voltage | 1000 V |
| Number of Phases | 3 |
| IP Rating | IP40 |
| Battery Life | 12 hrs. |
| Battery Type | 6 x 1.2V(rechargeable) type AA |
| Display | Color TFT LCD |
| Height | 75 mm |
| Interface | Optical-USB, WiFi |
| Operating Temperature | 0 to 40°C |
| Product Type | Power Analyzers |
| Storage Temperature | -10 To 60°C |
