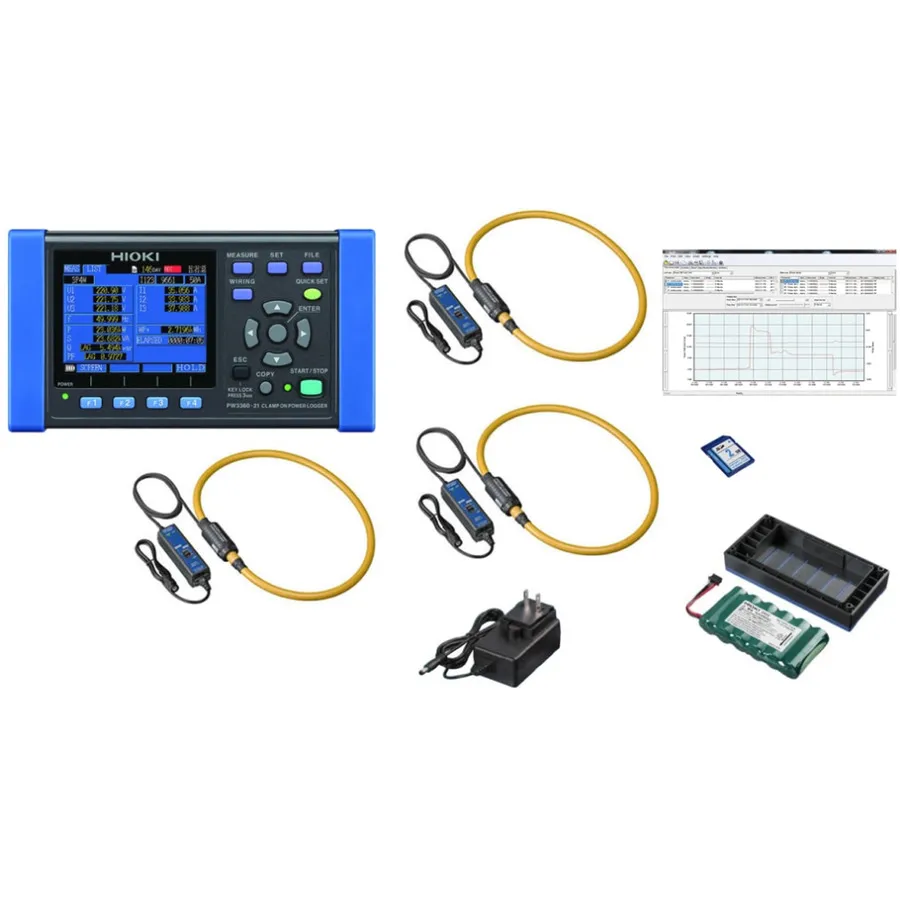

Hioki PW3360-21/5000PRO-4IN Power Analyzer
Request a quote
Hioki PW3360-21 is a 5000A four-input power analyzer for high-current power monitoring, comprehensive data logging, and multi-circuit power analysis.
Product details
| Model | PW3360-21/5000PRO-4IN KIT |
| Manufacturer | Hioki |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Hioki PW3360-21 is a power measurement and data logging device designed for monitoring electrical power consumption and analyzing power quality. Equipped with clamp-on current sensors, it enables non-invasive measurement of power parameters in industrial and commercial installations.
Key Features
- Non-contact current measurement using clamp sensors
- Power data logging for continuous system monitoring
- Power quality and demand analysis capabilities
- 5000A current measurement variant for high-power applications
- Four independent input channels for expanded monitoring capabilities
Applications
- High-current power consumption monitoring
- Multi-circuit power demand analysis
- Power quality troubleshooting in complex facility systems
- Comprehensive three-phase power system evaluation
Specifications
| Maximum AC Voltage | 780 V |
| Maximum AC Current | Requires Probe |
| Number of Phases | 3 |
| IP Rating | IP50 |
| Series | PW3360 Series |
| Display | 3.5 TFT LCD |
| Includes | CT9667-01 x 3, 9445-02, 3" 1 AC Flex Adapter, SF1001, Z4001, PW9002, PW3360 H-Case |
| Interface | USB, LAN |
