Hioki PQ3198/6000 KIT Power Quality Analyzer Kit

Overview

The Hioki PQ3198 is a comprehensive power quality analyzer designed for measuring single to three-phase power systems with high precision and accuracy. This kit enables monitoring and recording of power supply anomalies, allowing their causes to be quickly investigated and assessed. It measures voltage drops, flicker, harmonics, and transient events for complete power system diagnostics.

Key Features

• IEC61000-4-30 Class A standard compliance for power quality verification
• High accuracy: Voltage ±0.1% of nominal, Current ±0.1% rdg. ±0.1% f.s., Power ±0.2% rdg. ±0.1% f.s.
• Broadband voltage range for measuring high-order harmonic components up to 80 kHz
• Maximum 6000 V peak transient voltage measurement up to 700 kHz
• Measure up to 6000 A AC with flexible current sensors
• Two independent power measurement systems for channels 1-3 and channel 4
• Inverter measurement capability: 40-70 Hz fundamental frequency, up to 20 kHz carrier frequency
• Continuous gapless data recording
• Bundled PQ ONE software application for easy report generation
• Optional GPS BOX for synchronizing multiple devices

Applications

• Three-phase electrical power system monitoring and diagnostics
• Power quality assessment and harmonic distortion analysis
• Voltage sag, swell, and flicker detection
• Inverter and variable frequency drive (VFD) performance evaluation
• Power supply anomaly troubleshooting and investigation

Included Accessories

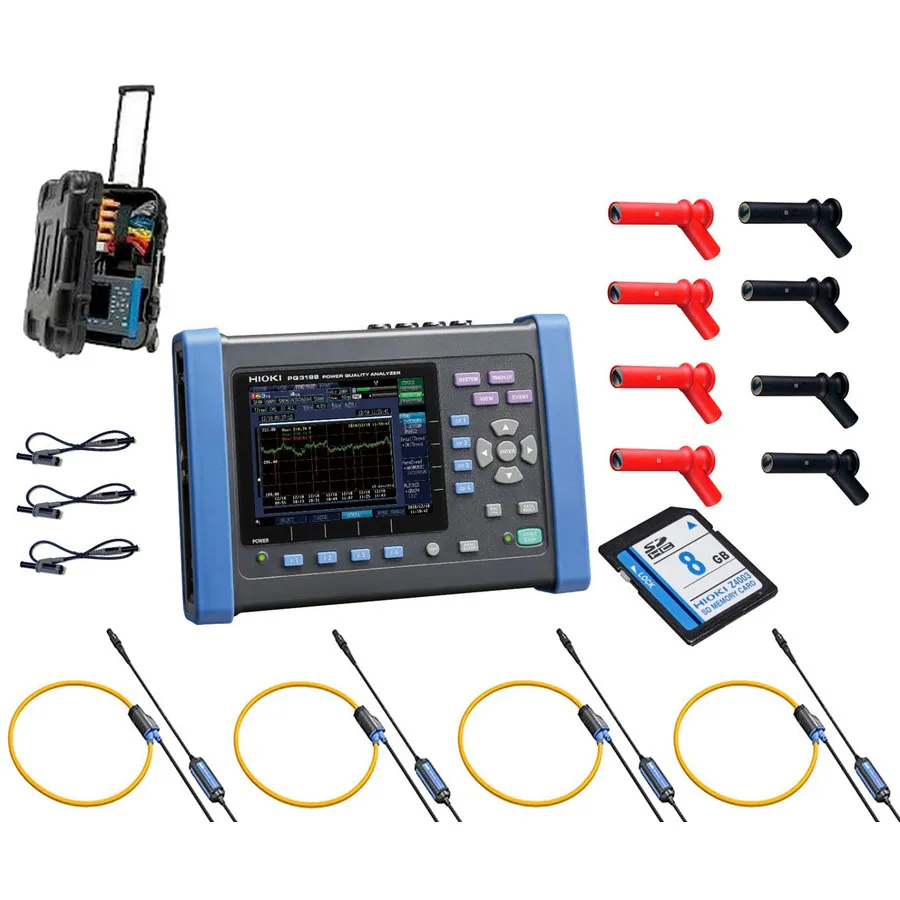

• 4x CT7045 6000 A AC current sensors
• 3x L1021-02 patch cords
• Z4003 8 GB SD memory card
• 4x 9804-01 magnetic voltage cord tip adapters (red)
• 4x 9804-02 magnetic voltage cord tip adapters (black)
• PW3198 HC hard carrying case
