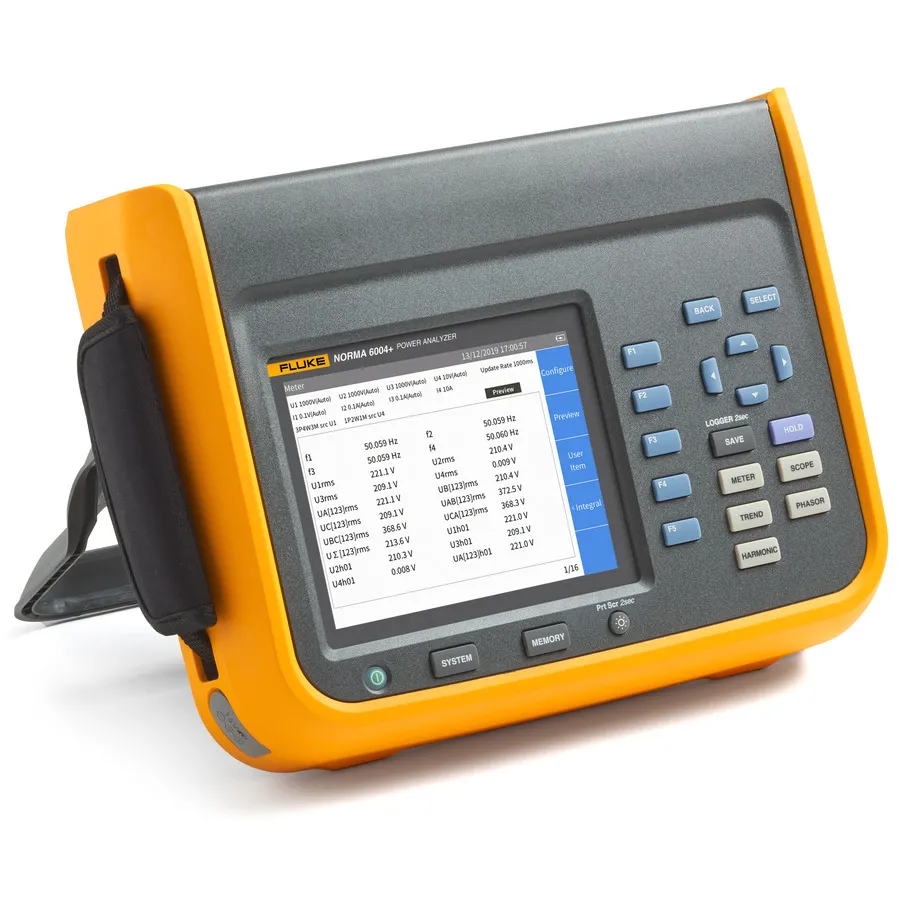

Fluke FLUKE-NORMA 6004+ Power Analyzer
Request a quote
Fluke FLUKE-NORMA 6004+ four-channel power analyzer with speed and torque measurement for simultaneous electrical and mechanical efficiency analysis.
Product details
| Model | FLUKE-NORMA 6004+ |
| Manufacturer | Fluke |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Fluke FLUKE-NORMA 6004+ is a four-channel power analyzer with integrated speed and torque measurement inputs. It enables simultaneous measurement of three-phase and DC power while capturing mechanical parameters, allowing engineers to assess the complete electrical-to-mechanical efficiency of motors and drive systems under real-world operating conditions.
Key Features
- Four measurement channels (4 voltage + 4 current inputs) plus motor speed/torque input
- Measures up to 1000 V AC RMS and 1500 V DC
- Current range up to 2000 A AC RMS and ±2000 A DC
- 500 kHz bandwidth with 200 ks/s sample rate
- 0.1% measurement accuracy
- Speed and torque measurement from external transducers
- 32 GB onboard storage for continuous data logging
- Battery-powered operation for up to 10 hours
- 5.7-inch TFT LCD display (640x480)
- CAT III 1000V and CAT IV 600V safety rated
- Electrically isolated channels for flexible configurations
- Full waveform, harmonics, vector, and trend data display
Applications
- Motor and drive efficiency testing under load
- Electrical-to-mechanical power conversion analysis
- Inverter performance evaluation on real equipment
- Power quality and mechanical vibration correlation studies
- Industrial motor troubleshooting and optimization
Included Accessories
- Power supply adapter
- Test leads (1.5 m: 4 red, 4 black, 4 blue; 0.18 m: 8 blue)
- Alligator clips (4 red, 4 black, 4 blue)
- USB (mini B) cable
- RS-485/synchrony adapter
- Speed/torque adapter (3.81 mm, black, 6 pin)
- USB Flash Drive with PC software and user manual
- Soft carrying case
Specifications
| Maximum AC Voltage | 1000 V |
| Maximum AC Current | 10 A |
| Maximum DC Current | 10 A |
| Number of Phases | 3 |
| IP Rating | IP50 |
| Series | 6000 Series |
| Battery Life | 10 hrs. |
| Battery Type | BP 291 Li-ion |
| Dimensions | 298 x 215 x 96 mm |
| Display | 5.7" TFT LCD |
| Includes | Power supply adapter, Power cord, Test Leads, Alligator Clips, USB (mini B) cable, RS-485/synchrony adapter, USB Flash Drive, Soft case |
| Interface | RS485, USB |
| Memory | 32 GB |
| Number of Inputs | 4 Voltage + 4 Current + 1 Motor |
| Operating Temperature Range | -10 to +50°C |
| Product Weight | 7.7 lb. |
| Sampling Rate | 200 kS/s |
| Warranty | 1 Year |
