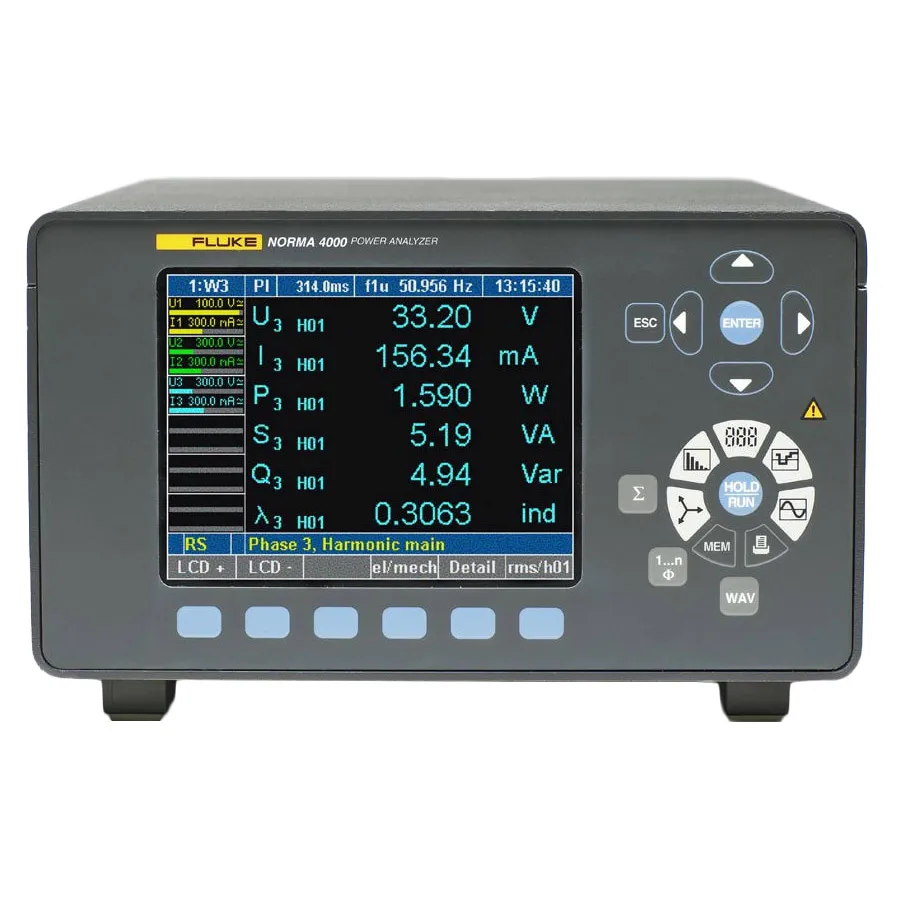

Fluke FLUKE-N4K 3PP42 Power Analyzer
Request a quote
Fluke FLUKE-N4K 3PP42 three-phase power analyzer with harmonic analysis to 40th harmonic and 5.7-inch color display for comprehensive power system testing.
Product details
| Model | FLUKE-N4K 3PP42 |
| Manufacturer | Fluke |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Fluke Norma 4000 (FLUKE-N4K 3PP42) is a high-precision three-phase power analyzer designed for comprehensive testing of power systems. It features a 5.7-inch color display, harmonic analysis capabilities, and three modular PP42 power phases for complete three-phase network and equipment analysis.
Key Features
- Three-phase measurement with three PP42 modules
- Bandwidth: DC to 3 MHz or DC to 10 MHz depending on input module
- Sampling Rate: 0.33 MHz or 1 MHz depending on input modules
- Voltage Input Range: 0.3 to 1000 V
- Fast Fourier Transformation (FFT) analysis to the 40th harmonic
- 5.7 inch / 144 mm color display
- 4 MB measured data memory
- Vector diagram display and scope mode
- RS232 interface standard with USB support
- Includes NormaView PC software for data analysis
Applications
- Three-phase power system analysis and monitoring
- Electric motor testing and analysis
- Inverter drive systems evaluation
- Lighting systems power analysis
- Transformer efficiency testing
- Power quality analysis in industrial facilities
- Switching power supplies and UPS testing
- Calibration and test laboratory applications
Included Accessories
- Norma 4000 High Precision Power Analyzer unit
- Power supply cable
- 5.7 inch / 144 mm Color display
- RS232/USB interface cable
- Fluke NormaView PC software
- Color user manual
- Test certificate with measurement values
Specifications
| Maximum AC Voltage | 1000 V |
| Maximum AC Current | 10 A |
| Number of Phases | 3 |
| Series | Norma 4000 Series |
| Display | Color |
| Interface | RS-232, USB |
