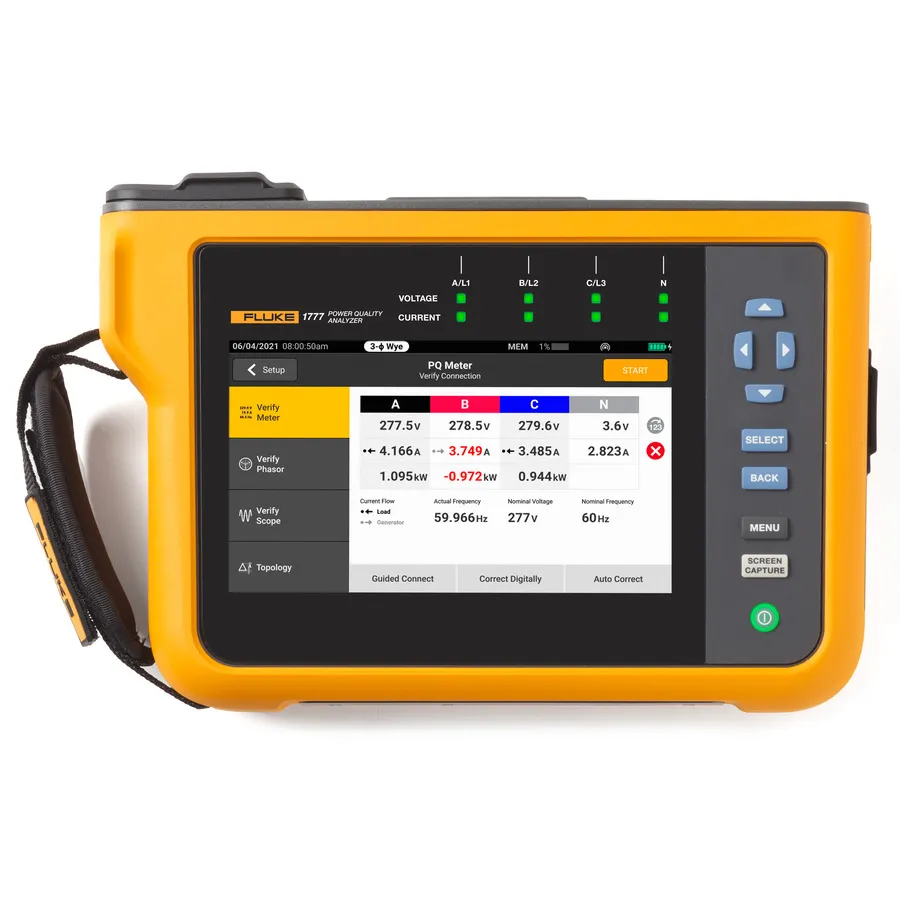

Fluke FLUKE-1777/BASIC Three-Phase Power Quality Analyzer

Overview

The Fluke FLUKE-1777/BASIC is a rugged, portable three-phase power quality analyzer designed for troubleshooting power quality issues in electrical systems. It automatically captures over 500 power quality parameters with a straightforward user interface and best-in-class specifications. Its compact size and ability to power directly from the measurement circuit make it versatile for both live measurements and long-term logging applications.

Key Features

• Automatic measurement of 500+ power quality parameters
• High-speed voltage transient detection up to 8 kV with 1 MS/s and 20 MS/s sampling rates
• 24-bit synchronous sampling with DC to 30 kHz bandwidth
• Power directly from measurement circuit with 90-minute internal battery
• GPS time synchronization for accurate data logging
• 7-inch TFT touch screen (1024 x 600 pixels)
• 32 GB microSD card with user-accessible expansion slot
• Multiple connectivity options: USB, Ethernet, optional WiFi/LTE modules
• Voltage inputs: 1000 V CAT III / 600 V CAT IV
• Compliant to IEC 61000-4-30 Class A, EN 50160, and IEEE 519 standards
• Energy Loss Calculator to quantify energy waste in financial terms
• Harmonics compliance monitoring against EN 50160 and IEEE 519

Applications

• Energy surveys and load testing
• Harmonic surveys up to 100th harmonic
• Nuisance circuit breaker tripping investigation
• Power utility power quality surveys
• Discovery of equipment failures caused by transients
• Voltage dips, swells, and distortion monitoring

Included Accessories

• FLUKE-17XX flat cable voltage test lead (3-phase + Neutral)
• Black and green alligator clips (AC285)
• USB-C cable (1 m)
• Line cord
• FLK-17XX 0.18 m test lead set with green test lead
• Cable marker set for voltage and current
• Wall outlet adapter (FLUKE-174X-MA-C8)
• Rolling hard case (FLUKE-1777 HARDCASE)
