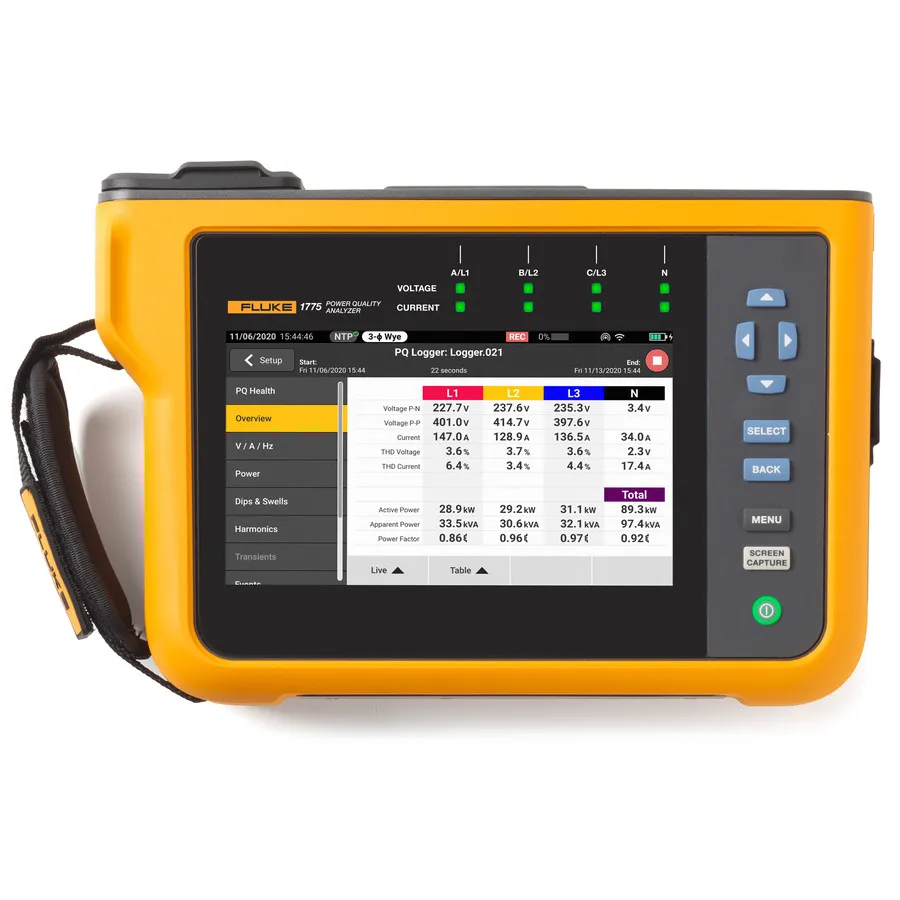

Fluke FLUKE-1775/FPC Power Quality Analyzer
Fluke FLUKE-1775/FPC three-phase power quality analyzer with 24-bit resolution, DC to 30 kHz bandwidth, 8 kV transient capture, plus 1-year Premium Care coverage.
Product details
| Model | FLUKE-1775/FPC |
| Manufacturer | Fluke |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Fluke 1775/FPC is a three-phase power quality analyzer designed for troubleshooting and analyzing electrical systems, bundled with a one-year Premium Care support plan. This portable, rugged device captures comprehensive power quality parameters, including fast waveforms, transients, and harmonics up to 30 kHz. The 1775 powers directly from the measurement circuit, eliminating the need for an external power cord, and features a 7-inch capacitive touchscreen for easy on-site operation. The Premium Care plan provides extended coverage above the standard product warranty.
Key Features
- Automatic measurement of 500+ power quality parameters
- 24-bit resolution with 80 kS/s synchronous sampling at 50/60 Hz
- Voltage transient capture up to 8 kV at 1 MS/s sampling rate
- Bandwidth: DC to 30 kHz for PQ measurements and harmonic analysis
- Three-phase voltage and current inputs with automatic range selection
- 7-inch TFT capacitive touch display (1024 x 600 pixels)
- 8 GB internal storage with user-accessible microSD card slot
- Multiple connectivity options: USB, Ethernet, WiFi, and optional LTE
- GPS time synchronization for precise event logging
- Two auxiliary inputs for temperature, humidity, and light measurements
- Compliant to IEC 61000-4-30 Class A, EN 50160, and IEEE 519
- 90-minute integrated battery with external power supply option
- Includes i17XX-FLEX1500 18-inch current probes and WiFi/BLE adapter
- One-year Premium Care support plan included
Applications
- Energy surveys and load profiling
- Harmonic surveys and compliance verification
- Nuisance circuit breaker tripping investigation
- Power utility power quality studies
- Detection of equipment failures from voltage transients
- Long-term power quality logging and trend analysis
Included Accessories
- Premium Care 1-Year Standard Plan
- i17XX-FLEX1500 18-inch flexible current probes (set of four)
- Three-phase voltage test lead set
- Alligator clips (four black, one green)
- 1-meter USB-C cable
- Line cord
- Test lead sets and magnetic probes
- Magnetic hanging kit
- WiFi/BLE module
- Wall outlet adapter
- Black soft carrying case
- Cable marker set
Specifications
| Maximum AC Voltage | 1000 V |
| Maximum DC Voltage | 1000 V |
| Maximum AC Current | Requires Probe |
| Number of Phases | 3 |
| Series | 1770 Series |
| Display | 7" TFT Color |
| Interface | USB, WiFi, Ethernet, LTE option |
Request a quote
