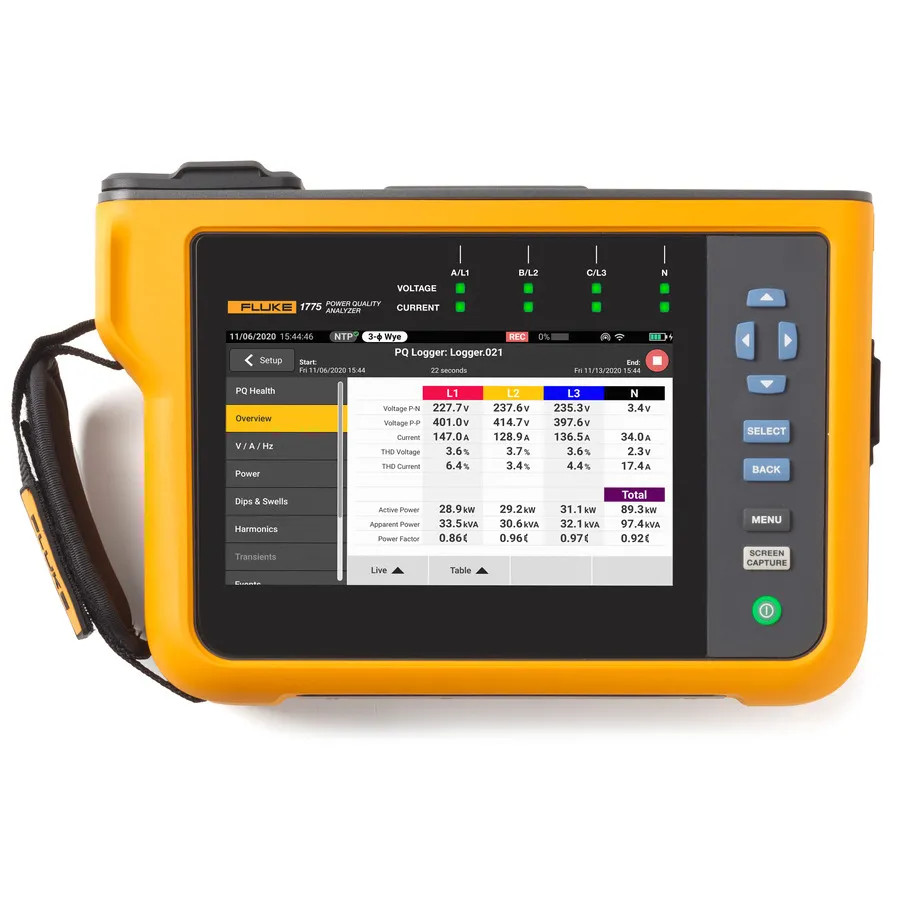

Fluke FLUKE-1775/BASIC Power Quality Analyzer

Overview

The Fluke 1775/BASIC is a three-phase power quality analyzer designed for troubleshooting and analyzing electrical systems. This portable, rugged device captures comprehensive power quality parameters, including fast waveforms, transients, and harmonics up to 30 kHz. The 1775 powers directly from the measurement circuit, eliminating the need for an external power cord, and features a 7-inch capacitive touchscreen for easy on-site operation. The BASIC model is supplied without current probes and WiFi/BLE adapter.

Key Features

• Automatic measurement of 500+ power quality parameters
• 24-bit resolution with 80 kS/s synchronous sampling at 50/60 Hz
• Voltage transient capture up to 8 kV at 1 MS/s sampling rate
• Bandwidth: DC to 30 kHz for PQ measurements and harmonic analysis
• Three-phase voltage and current inputs with automatic range selection
• 7-inch TFT capacitive touch display (1024 x 600 pixels)
• 8 GB internal storage with user-accessible microSD card slot
• Multiple connectivity options: USB, Ethernet, and optional WiFi/LTE modules
• GPS time synchronization for precise event logging
• Two auxiliary inputs for temperature, humidity, and light measurements
• Compliant to IEC 61000-4-30 Class A, EN 50160, and IEEE 519
• 90-minute integrated battery with external power supply option

Applications

• Energy surveys and load profiling
• Harmonic surveys and compliance verification
• Nuisance circuit breaker tripping investigation
• Power utility power quality studies
• Detection of equipment failures from voltage transients
• Long-term power quality logging and trend analysis

Included Accessories

• Three-phase voltage test lead set
• Alligator clips (one black, one green)
• 1-meter USB-C cable
• Line cord
• Test lead sets
• Wall outlet adapter
• Black soft carrying case
• Cable marker set
