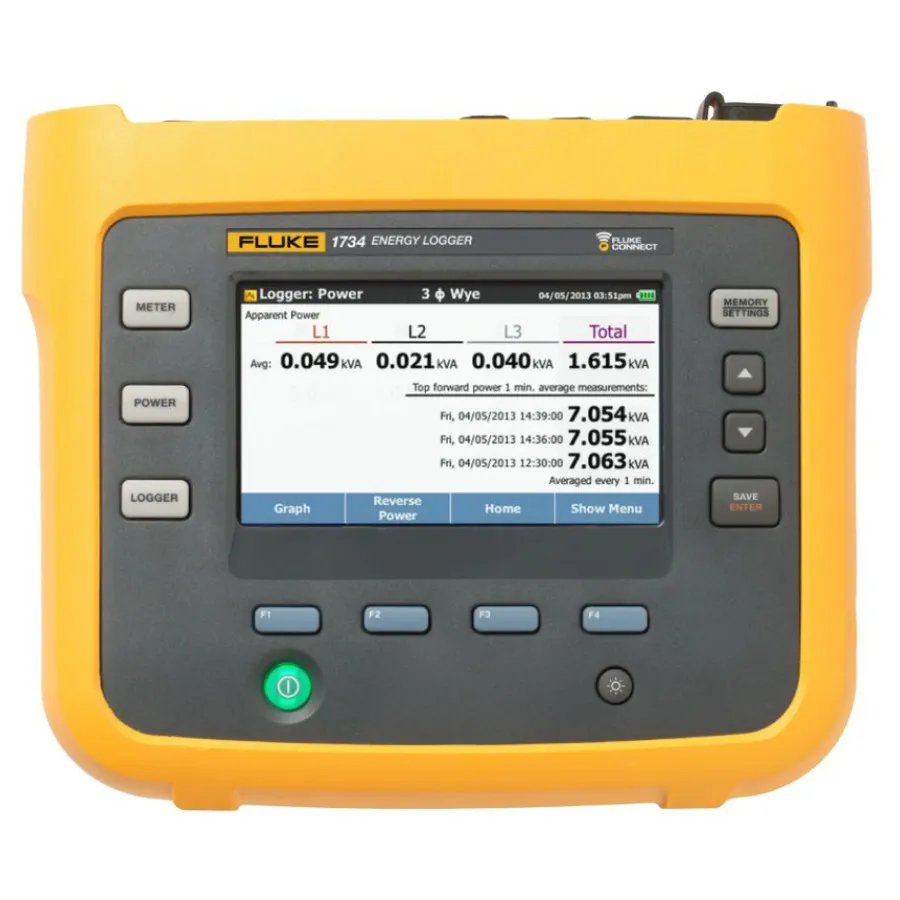

Fluke 1734/EUS Energy Logger

Overview

The Fluke 1734/EUS is a three-phase electrical energy logger with integrated Fluke Connect wireless connectivity that automatically measures and logs voltage, current, power, power factor, and energy values across your facility. Designed for electricians, facility managers, and energy auditors, it provides comprehensive data collection to identify energy waste sources and supports optimization efforts from the service entrance to individual circuits.

Key Features

• Three-phase measurement with logging of 20+ separate sessions
• Bright color touch screen with intuitive graphical display
• Built-in Fluke Connect WiFi and BLE adapter for wireless data access and team sharing
• View data on the instrument, Fluke Connect app, or PC
• Intelligent connection verification with automatic error correction
• Flexible 1500 A current probes for tight conductor spacing
• Powered directly from measured circuit—no external outlet required
• CAT IV/1000V safety rating
• Energy Analyze Plus software included for automated reporting and analysis

Applications

• Load Studies—Discover equipment energy consumption at minimum and maximum capacity
• Energy Assessments—Quantify energy consumption before and after improvements
• Energy Surveys—Verify utility meter readings and identify major loads
• Power and Energy Logging—Measure and optimize peak demand and power factor
• Simplified Load Studies—Use current-only measurement when voltage is impractical

Included Accessories

• 1734 Energy Logger
• Power supply with line cords
• Voltage test leads
• Alligator clips (4x)
• Magnetic voltage probes (4x)
• 12-inch 1500 A flexible current probes (3x)
• Soft carrying case
• WiFi/BLE adapter
• Magnetic hanging strap
• Energy Analyze Plus software
• Color coding set
• Documentation on USB flash drive
