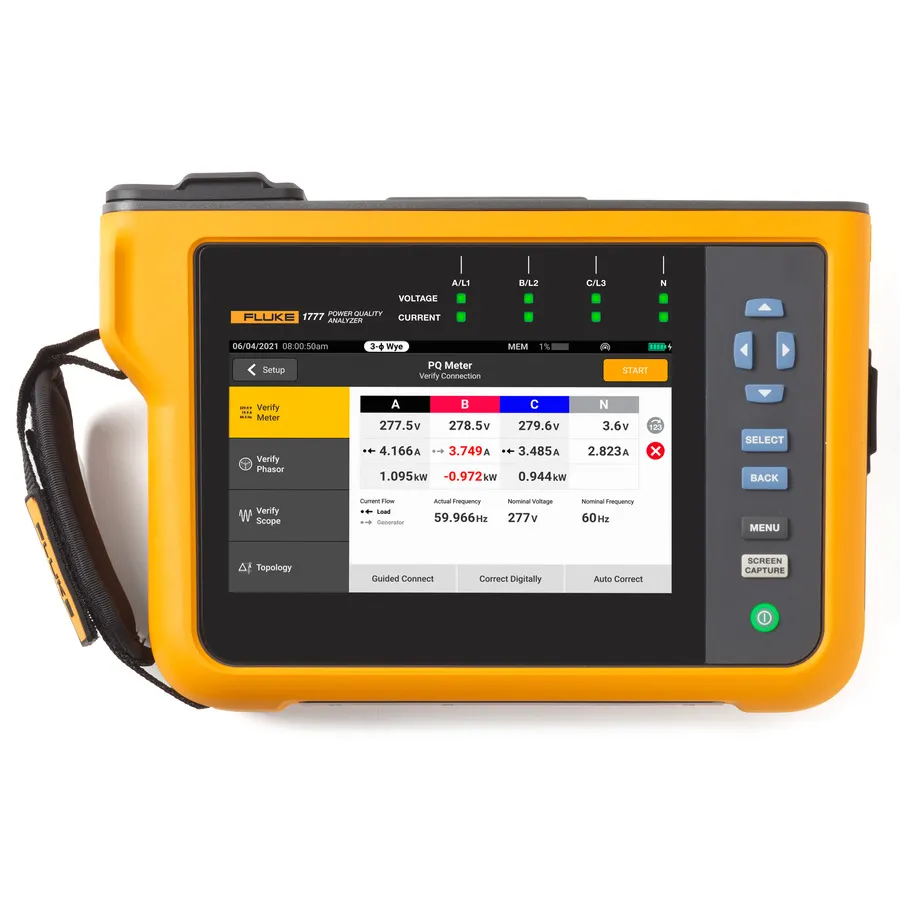

Fluke 1777/FPC Power Quality Analyzer
Request a quote
Fluke 1777/FPC is a three-phase power quality analyzer with 24-bit sampling, WiFi/BLE connectivity, 8kV transient capture, and comprehensive power quality logging.
Product details
| Model | 1777/FPC |
| Manufacturer | Fluke |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Fluke 1777/FPC is a three-phase power quality analyzer and logger engineered for troubleshooting and long-term monitoring of electrical systems. This rugged, portable device combines the troubleshooting functionality of a power quality meter with robust analysis and logging capabilities in a single handheld instrument. It offers automatic measurement capture of 500+ power quality parameters, a straightforward user interface, and simplified reporting capabilities that comply with international standards.
Key Features
- Automatic measurement and logging of 500+ power quality parameters
- 24-bit synchronous sampling at 80 kS/s
- High-speed voltage transient capture up to 8kV (1 MS/s and 20 MS/s sampling rates)
- Harmonic analysis up to 30kHz with measurement of harmonic distortion
- Monitoring of dips, swells, voltage unbalance, flicker, and inrush currents
- WiFi, Bluetooth, and LTE connectivity options for wireless data transfer
- 7-inch TFT touchscreen display (1024 x 600 pixels)
- Direct measurement circuit power supply (90-minute internal battery)
- GPS time synchronization for multi-point measurements
- 32GB microSD card for data storage (user-accessible slot for expansion)
- Includes Fluke Energy Analyze Plus software for reporting and analysis
- Compliant with IEC 61000-4-30 Class A, EN 50160, and IEEE 519 standards
Applications
- Energy surveys and facility load profiling
- Harmonic analysis and distortion studies
- Nuisance circuit breaker tripping investigation
- Power utility power quality surveys
- Equipment failure diagnosis caused by voltage transients
- Energy loss identification and cost analysis
- Compliance verification against power quality standards
Included Accessories
- 1777 Power Quality Analyzer
- 3PHVL-17XX flat cable voltage test lead (3-phase + N)
- AC285 black alligator clips (set of four)
- AC285 green alligator clip
- MP1-3R/1B magnetic probes (set of four)
- Black 1M USB-C cable
- Line cords (US, EU, UK, AUS, BRA)
- FLUKE-17XX-TL blue stacking test lead 0.18M
- Green test lead
- WiFi/BLE module
- Cable marker set (voltage and current)
- Battery with housing (installed)
- MA-C8 wall outlet adapter
- i17XX-FLEX1500/18 flexible 1500A AC current clamps (set of four)
- 32GB micro-SD card (installed)
- C1777 hard case
- 1 Year Premium Care
