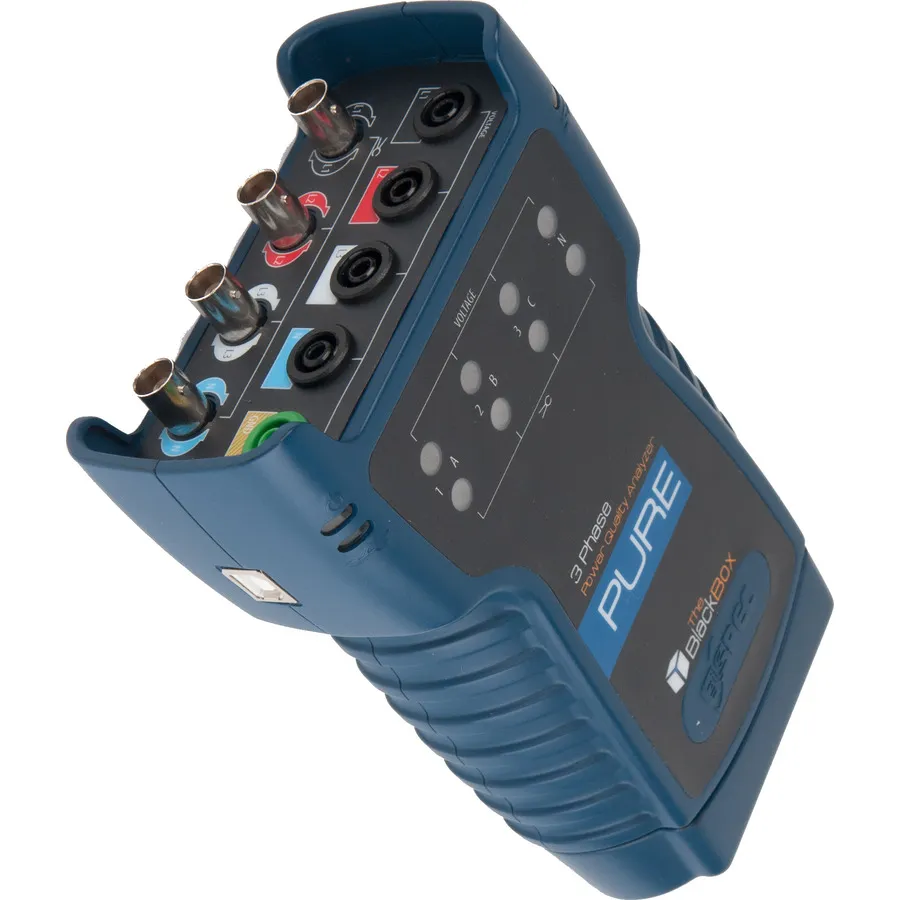

Elspec SPG-531A-0090 Three Phase Power Quality Analyzer

Overview

The Elspec SPG-531A-0090 PureBB is a three-phase plug-and-play power quality analyzer designed for comprehensive monitoring of balanced and unbalanced three-phase systems. This configuration-free device continuously records all power quality parameters across all three phases, enabling rapid detection and analysis of power disturbances without requiring complex setup procedures.

Key Features

• Three-phase power quality monitoring capability
• Continuous waveform recording at 256 samples per cycle
• Class A device per IEC61000-4-30 standard
• Configuration-free plug-and-play operation
• Fast USB connectivity to PC
• SD card slot with hot swap capability
• Lightweight, handheld, portable design
• Two-sided mounting clip for DIN rail, magnet, or nail mounting

Applications

• Three-phase power quality monitoring in industrial facilities
• Detection of phase imbalance and harmonic distortion
• Electrical troubleshooting in commercial and industrial systems
• Power system compliance verification and analysis
• Recording and analyzing power quality events

Included Accessories

• Installation USB stick with PQSCADA Sapphire software
• User guide and manuals
• MicroSD card (4GB)
• 5 voltage cords with crocodile clips and fuses (3m)
• 3-phase customized Lexan housing
• USB cable type A to type B male (1.5m)
• 2-pin terminal block connector
• European power cable 10A/230V (1.8m)
• American power cable 10A/125V (1.8m)
• Blue silicone protective cover (122x183x62mm)
