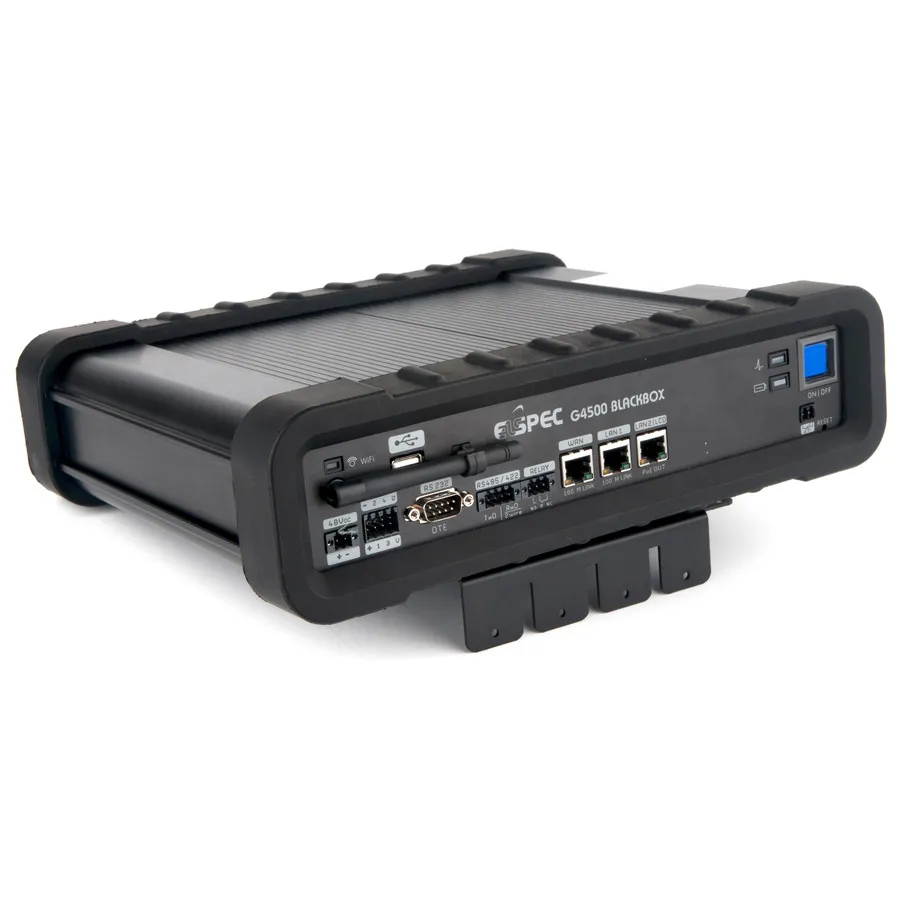

Elspec SPG-4500-0090 G4500 Power Quality Analyzer

Overview

The Elspec G4500 is an advanced power quality analyzer with extended capabilities for continuous waveform recording and real-time monitoring. It features enhanced memory capacity and integrated networking options, making it suitable for comprehensive power quality assessment across electrical systems.

Key Features

• Continuous waveform recording with 1024 samples per cycle for voltage and 256 samples per cycle for current
• PQZIP compression technology enabling storage of up to 1000 times more data
• 32GB internal memory for extended recording periods
• Full Class A compliance
• Multiple connectivity options: WiFi with integrated antenna, dual LAN, single USB port with integrated router, NAT, and firewall
• Four digital inputs, one relay output, RS232 for GPS, RS485/422 for network communication
• Power inputs: 4 channels (3 phases + neutral) plus 1 ground/DC channel

Applications

• Power quality monitoring and standards compliance testing
• Real-time electrical waveform analysis across distributed systems
• Remote monitoring with integrated WiFi and LAN connectivity
• Long-term power system data collection and analysis

Included Accessories

• PQSCADA Sapphire software
• G4500/G3500 quick reference guide and user manuals
• 5 AC voltage test leads and clips
• 7 voltage cords with crocodile clips and fuses (3 meters each)
• Carrying trolley case
