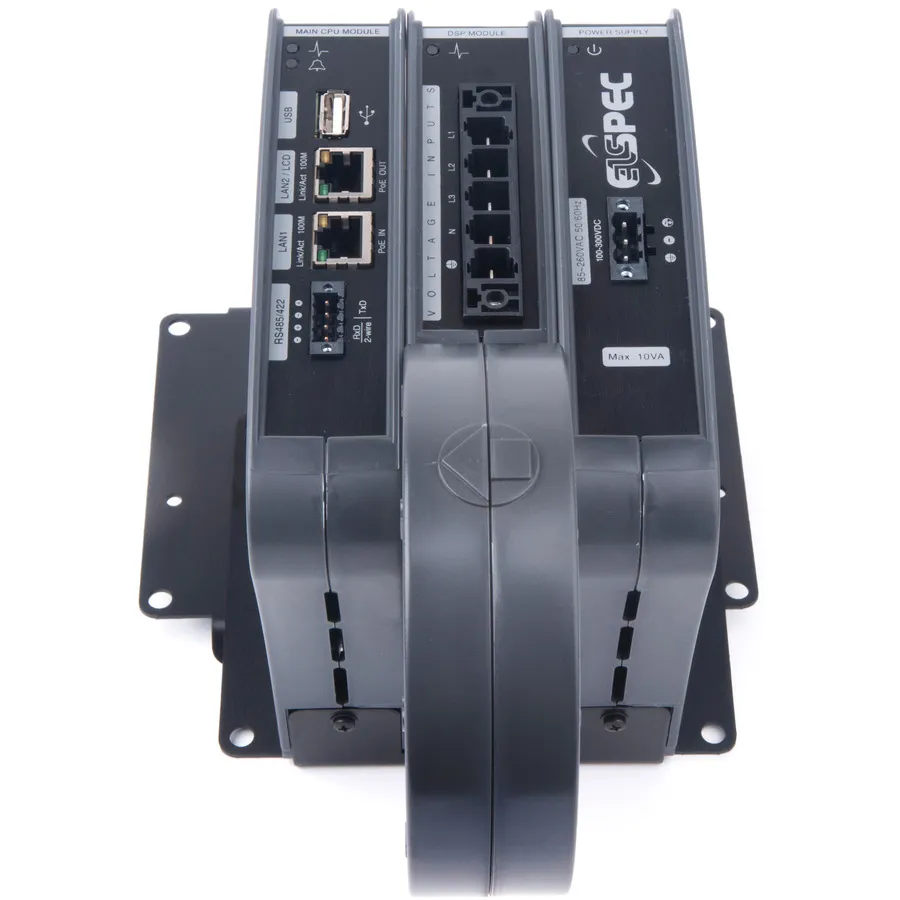

Elspec SPG-4420-0090 Power Quality Analyzer
Request a quote
Elspec SPG-4420-0090 power quality analyzer with 512V/256A waveform recording, PQZIP compression, 4GB memory and Class A compliance.
Product details
| Model | SPG-4420-0090 |
| Manufacturer | Elspec |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Elspec SPG-4420-0090 is a power quality analyzer designed for comprehensive electrical system monitoring. It records continuous waveforms at 512 samples per cycle for voltage and 256 for current, enabling detailed analysis of power quality events without requiring predefined triggers or thresholds.
Key Features
- Continuous waveform recordings: 512 voltage and 256 current samples per cycle
- PQZIP compression technology enables storage of up to 1000 times more data
- Superior measurement accuracy using dual-range 2x16-bit technology, exceeding Class A performance
- 4GB internal memory for extended recording periods
- Automatic event capture without trigger or threshold configuration
- Standard compliance testing: EN50160, IEC 61000-4-30 Class A, and custom standards
Applications
- Power quality assessment and monitoring
- Electrical grid analysis and compliance verification
- Troubleshooting power-related equipment issues
Specifications
| Maximum AC Voltage | 8 kV |
| Maximum AC Current | 50 A |
| Number of Phases | 3 |
| Series | G4400 Series |
| Alternate Product Number | G4420 |
| Display | None |
| Interface | USB, RS-485, LAN, Ethernet |
| Series Compatibility | G4K Series, G4500 Series |
