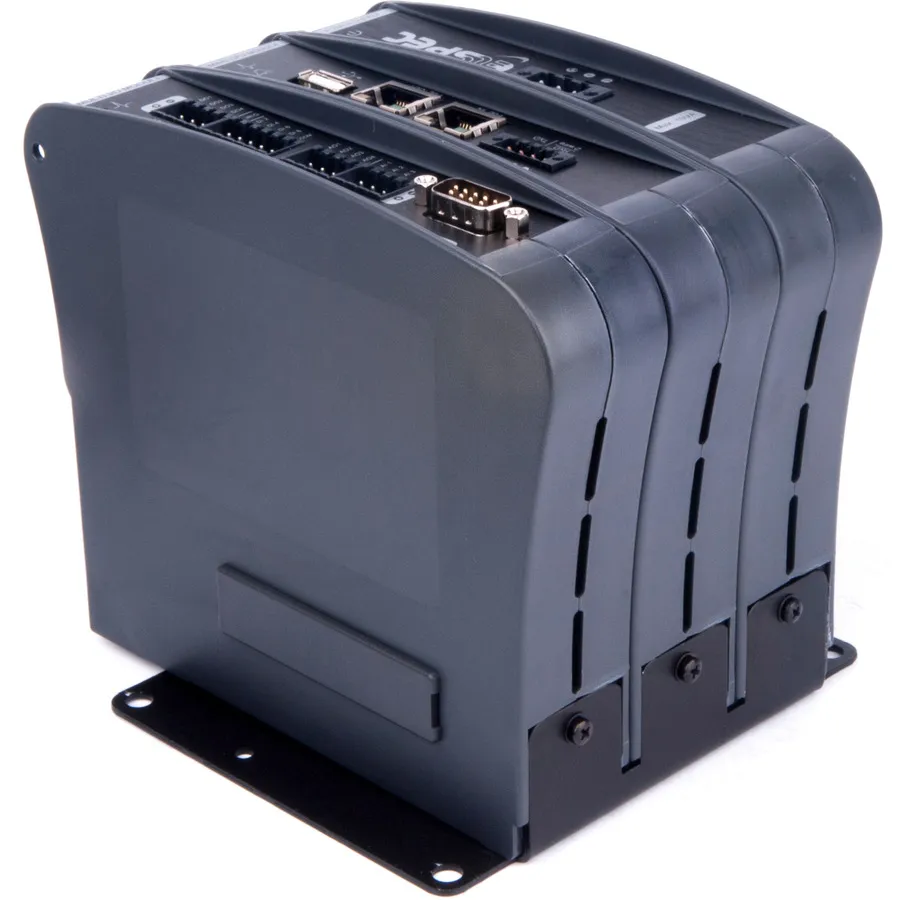

Elspec SPG-4401-0090 Power Quality Analyzer
Request a quote
Elspec SPG-4401-0090 is a power quality analyzer with sequence of event recording, 8 digital inputs at 800Hz, and 4-20mA analog I/O capability.
Product details
| Model | SPG-4401-0090 |
| Manufacturer | Elspec |
| Category | Power Analyzers |
| Availability | Made to order |
Description
Overview
The Elspec SPG-4401-0090 (G4401) is a power quality analyzer equipped with a Sequence of Event Recorder (SER) for capturing and analyzing power events. It features multiple digital and analog input/output channels for comprehensive power system monitoring and diagnostics.
Key Features
- Sequence of Event Recorder (SER) with high-speed event capture
- 8 digital inputs operating at 800Hz sampling rate
- 4 digital outputs for event triggering and control
- 4 analog 4-20mA inputs for sensor integration
- 4 analog 4-20mA outputs for signal transmission
Applications
- Power quality analysis and disturbance recording
- Event correlation and root cause analysis
- Industrial power system monitoring
- Transient event capture and analysis
Specifications
| Maximum AC Voltage | 8 kV |
| Maximum AC Current | 50 A |
| Number of Phases | 3 |
| Series | G4400 Series |
| Alternate Product Number | G4401 |
| Display | None |
| Interface | USB, RS-485, LAN, Ethernet |
| Series Compatibility | G4K Series, G4500 Series |
