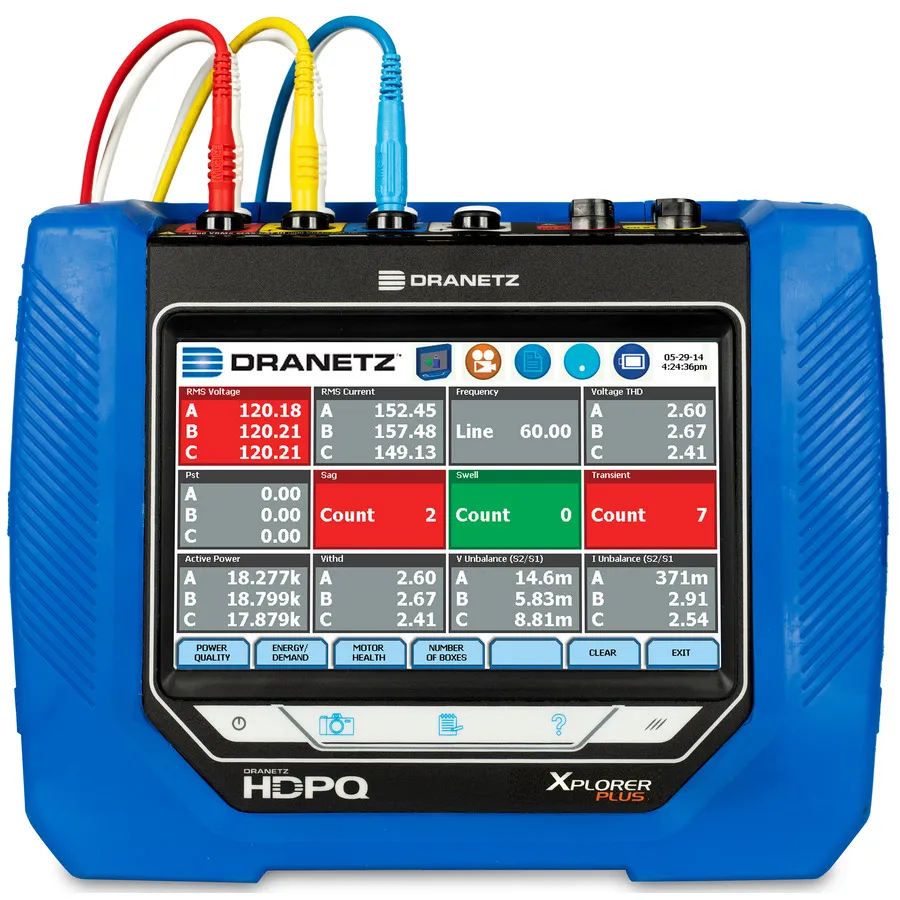

Dranetz HDPQ-P-XAFLEX3KPKG Xplorer Plus Power Quality Analyzer

Overview

The Dranetz HDPQ-P-XAFLEX3KPKG Xplorer Plus is a portable power quality analyzer designed for comprehensive power monitoring surveys. It features advanced transient capture capabilities with 1 microsecond resolution and supports high-speed characterization of power quality events including sags, dips, swells, interruptions, harmonics, and flicker.

The instrument combines IEC 61000-4-30 Class A Edition 3 compliance with practical portability, making it suitable for field measurements. It provides simultaneous capture and analysis of thousands of parameters through customizable operating modes, including advanced measurements for unbalanced and non-sinusoidal systems.

Key Features

• 8-channel configuration with 4 voltage and 4 current channels
• 1 microsecond per channel high-speed transient capture capability
• 512 samples per cycle measurement resolution
• IEC 61000-4-30 Class A Edition 3 and IEEE 1159 compliance
• Detects sags, dips, swells, interruptions, harmonics, flicker, and transients
• 7-inch color touch LCD display with tablet-like interface
• Remote control via Ethernet and optional wireless connectivity
• Dran-View 7 software for comprehensive data analysis and reporting
• 3000A/24 inch FLEX probe package with three-phase and single-phase probes

Applications

• Power quality monitoring and assessment
• Energy and demand analysis
• Harmonic and non-sinusoidal waveform troubleshooting
• Transient analysis and event characterization
• Motor performance analysis via Intelligent AnswerModule
• Field-based power system surveys

Included Accessories

• SCC-HDPQ soft carry case with storage compartments
• Three-phase flex probe 30/300/3000A (DRANFLEX3003XLB24)
• Single-phase flex probe 30/300/3000A (DRANFLEX3000XLB24)
• Voltage cable set with 8 measurement cables and alligator clips
• AC adapter with multiple plug adapters (US, Euro, UK, Australia, China)
• Dran-View 7 software package for Windows
