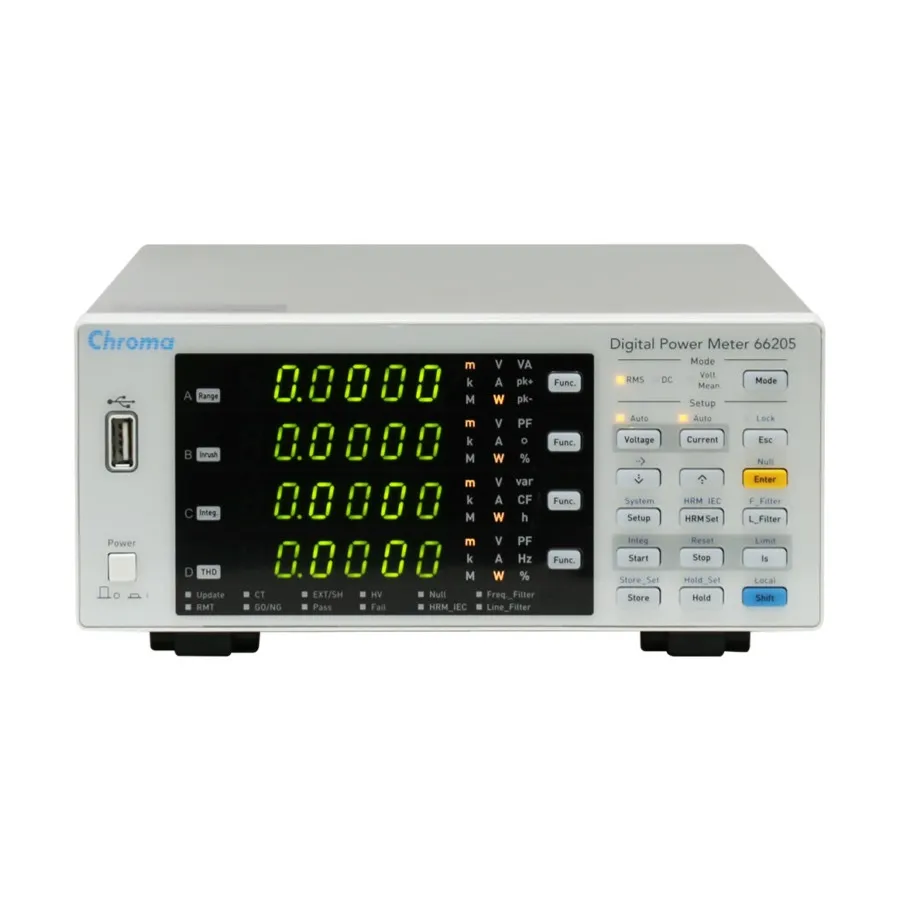

Chroma 66205 Digital Power Meter

Overview

The Chroma 66205 is a second-generation single-channel digital power meter from the 66200 series, engineered for highly accurate power measurements meeting IEC 62301 and EN50564 standards. It features state-of-the-art DSP technology with 16-bit converters and sampling rates up to 250 kHz, supporting voltage ranges to 600V and current measurement up to 30A.

The 66205 delivers exceptional performance for R&D, production, and quality control applications requiring precise power analysis. Its Smart Range function automatically optimizes measurement accuracy during power integration, while comprehensive harmonic measurement capabilities (up to 100 orders) ensure compliance with international standards and precise analysis of switching power supplies and modern electronic devices.

Key Features

• Single-channel high-accuracy power measurement
• Voltage ranges: 15, 30, 60, 150, 300, 600 Vrms (1200V with optional adapter)
• Current ranges: 0.005 to 30 Arms with 5 mA minimum
• DC to 10 kHz frequency range with 250 kHz sampling rate
• 0.1 mW power resolution with low range error (0.05%)
• Smart Range function for auto-ranging power integration measurements
• Harmonic measurement up to 100 orders with 5 Hz frequency resolution
• IEC 61000-3-2 compliant line filter (OFF, 500 Hz, 5.5 kHz)
• THD and user-specified order distortion measurement
• Inrush current and energy measurements
• Multiple interfaces: GPIB, USB (Host with data logging), RS232, LAN (optional)
• Support for external shunt and CT/DCCT sensors
• Graphical softpanel software for control, visualization, and data recording
• Automatic precompliance testing per IEC 61000-3-2

Applications

• Energy efficiency and standby power measurement per IEC 62301
• Harmonic compliance testing and power quality analysis
• Power efficiency characterization of switching converters
• R&D validation and production testing
• Quality control and standards compliance verification
• ENERGY STAR and ErP requirement verification

Measurement Parameters

The 66205 provides comprehensive measurement capabilities including Vrms, Vpeak (positive and negative), voltage harmonics, V_THD, crest factor voltage, Irms, Ipeak (positive and negative), current harmonics, I_THD, crest factor current, real power (W), apparent power (VA), reactive power (VAR), power factor, voltage and current frequency, energy (Wh and Ah), and phase angle.
