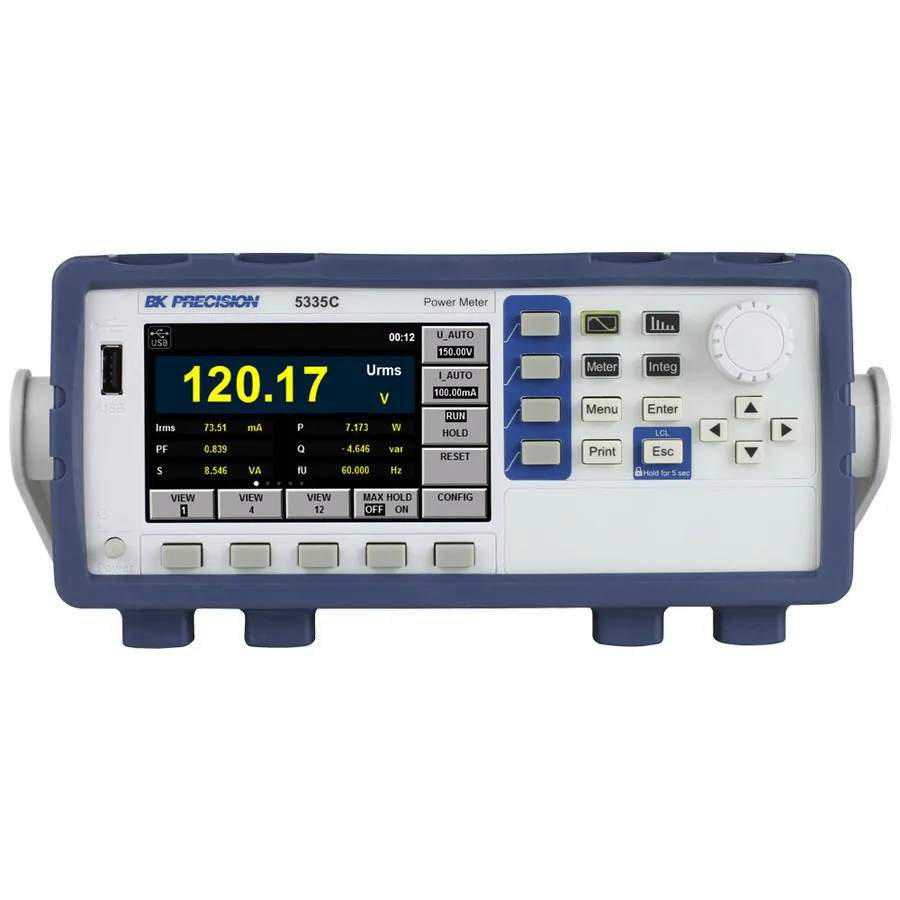

B&K Precision 5335C Single-Phase AC/DC Power Meter

Overview

The B&K Precision 5335C is a compact, single-phase AC/DC power meter designed for comprehensive power consumption and power quality analysis. It provides direct measurements up to 600 Vrms and 20 Arms with a bandwidth of up to 100 kHz, featuring a large 4.3-inch color display and intuitive interface for quick configuration and measurement review.

Key Features

• Input ranges: 600 Vrms (CAT II) and 20 Arms direct input
• Frequency range: 0.5 Hz to 100 kHz
• Measurement accuracy: 0.1% basic accuracy for voltage and current
• Display: 4.3-inch color TFT LCD with numeric and graphical display modes
• Simultaneous measurement display: Up to 12 different parameters at once
• Harmonic analysis: Measurements to the 50th order
• Peak capture: Inrush current and voltage surge detection
• Integration function with automatic range switching
• Energy measurement: Measures both produced and consumed electrical energy
• Measurement modes: Meter, harmonic, integration, and oscilloscope modes
• Pre-compliance testing: IEC/EN62000-3-2 and 4-7 compliance support
• Signal processing: Line and frequency filter capability for reducing unwanted noise
• Interfaces: USB (USBTMC-compliant), RS232, and LAN
• Data capture: Screenshot saving to USB flash drive

Applications

• Single-phase AC/DC power consumption and quality monitoring
• Harmonic distortion analysis and pre-compliance testing
• Energy efficiency measurement and electrical equipment diagnostics

Included Accessories

• Getting started manual
• Instruction manual (downloadable)
• AC power cord
• USB type A-to-type B cable
• Certificate of calibration
