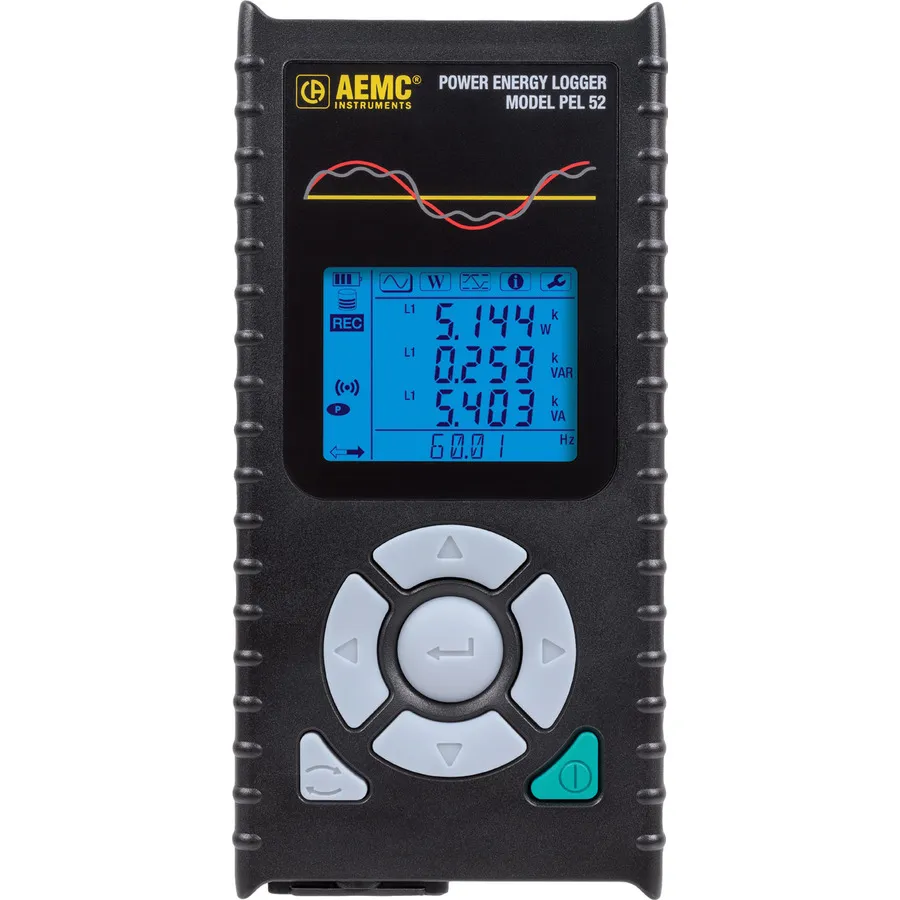

AEMC PEL 52 Power and Energy Logger

Overview

The AEMC PEL 52 is a compact, affordable power and energy logger designed for single-phase and split-phase electrical systems. With two measurement channels and true RMS voltage and current capability up to 600 V CAT III, the PEL 52 enables electricians, contractors, and engineers to measure, record, and analyze vital energy data for improved power management and operational efficiency.

Key Features

• Two channels for single-phase or split-phase measurements
• True RMS voltage and current measurements up to 600 V CAT III
• Power measurements: W, VA, and var (P, Q, S, N, and D)
• Power Factor (PF) and Displacement Power Factor (DPF) calculations
• Crest Factor and Total Harmonic Distortion (THD) measurements
• Wide backlit LCD display
• Self-powered from the phase, eliminating battery reliance
• Wi-Fi for real-time remote diagnostics and multi-station operation
• SD card data storage for easy transport and analysis
• Measurement aggregation from 1 second to 1 hour intervals
• Included MiniFlex MA193-10-BK current sensors

Applications

• Load surveys to determine energy consumption at min/max power levels
• Energy analysis before and after efficiency improvements
• Energy audits across multiple locations
• Heat pump and HVAC system monitoring
• Appliance and equipment efficiency testing

Included Accessories

• PEL 52 Power and Energy Logger
• Two MiniFlex MA193-10-BK current sensors
• Three black test leads with alligator clips
• 110 V US power cord and adapter
• 8 GB SD card
• USB SD card reader
• Two AAA rechargeable batteries
• Soft carrying bag
• Quick start guide and USB drive with DataView software and user manual
