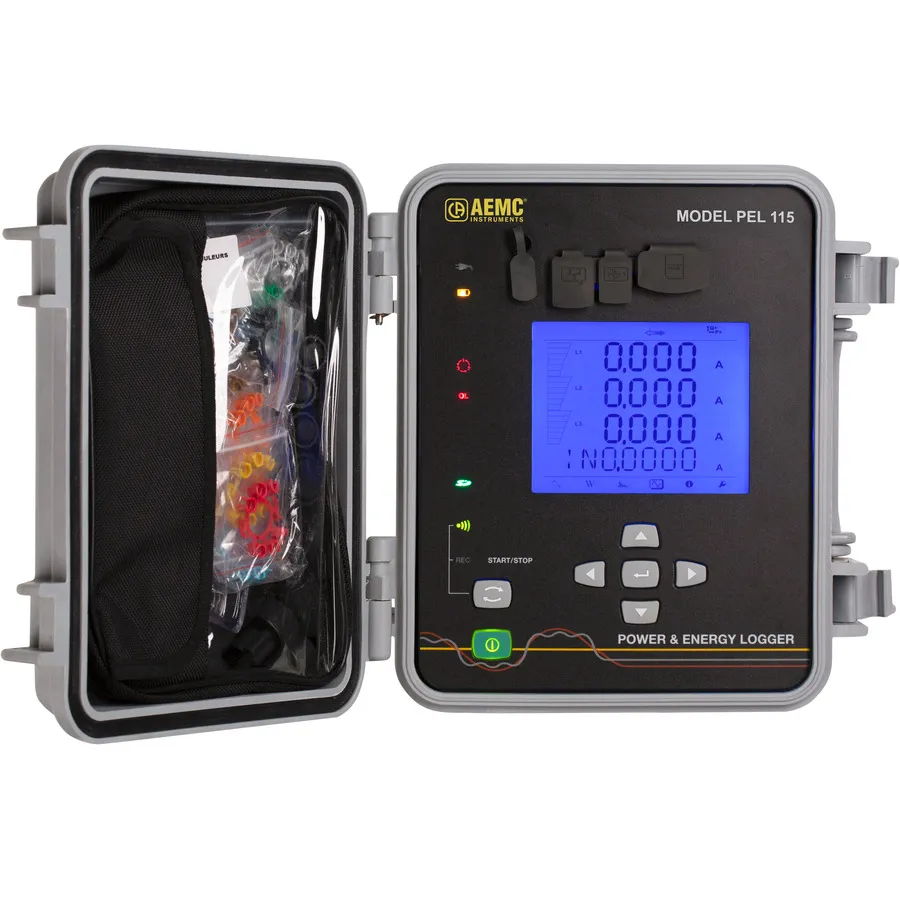

AEMC PEL 115 Power and Energy Logger

Overview

The AEMC PEL 115 is a versatile three-phase power and energy logger designed for field measurements and monitoring. Featuring four voltage and four current channels with automatic sensor recognition, the PEL 115 enables effortless energy logging for improved power management in residential, commercial, and industrial settings. Its rugged, IP67 waterproof housing makes it suitable for outdoor use on electrical poles and in challenging environments.

Key Features

• Four voltage and four current channels with auto-recognition of connected sensors
• 0.2% reading accuracy for voltage measurements
• Voltage range from 10 to 1,000 V AC/DC and current range from 200 mA to 12 kA AC / 50 mA to 1,300 A DC
• 1,000 V CAT III safety rating
• IP67 waterproof case suitable for outdoor and field use
• Expandable SD card storage (up to 32 GB) for unlimited data recording
• Power source from the phase, eliminating battery reliance
• Multiple connectivity options: USB, Ethernet, Wi-Fi, and remote access
• Built-in motor diagnostics assessing speed, efficiency, and torque
• 32 configurable alarms for safety and monitoring

Applications

• Predictive and preventive maintenance
• Energy audits and consumption analysis
• Cost optimization and energy efficiency improvements
• Building and system monitoring
• IT infrastructure maintenance

Included Accessories

• PEL 115 Logger (without sensors)
• Extra large carrying bag with rubber bottom
• Five 10 ft (3 m) black test leads with alligator clips
• Waterproof cap with alligator clips
• Power adapter 110/230 V with US power cord
• USB cable (5 ft) and 8 GB SD card
• USB SD card reader
• Set of 12 color-coded input ID markers
• 9.6 V NiMH battery (pre-installed)
• Set of 4 large and 5 small waterproof caps
• Quick start guide and USB drive with DataView software and user manual
