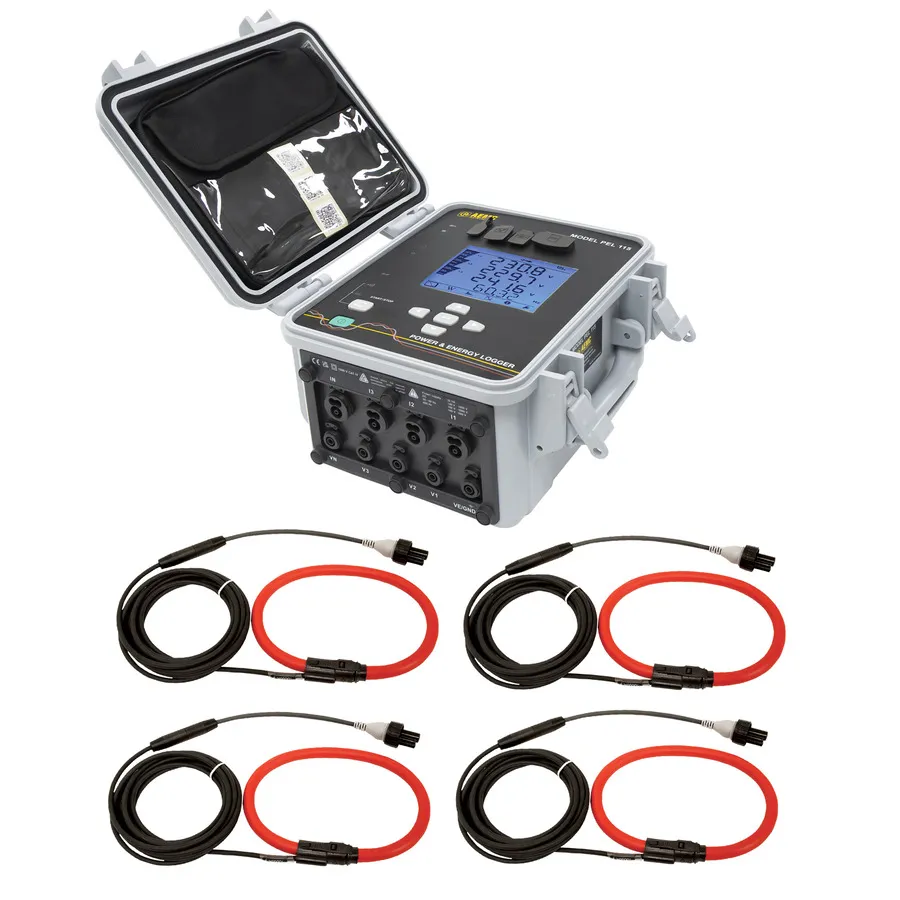

AEMC PEL 115 Power and Energy Logger

Overview

The AEMC PEL 115 enables effortless energy logging for improved power management with a rugged, waterproof design for field and outdoor use. Operating as a single-, dual- (split-phase), and three-phase power and energy logger, it is equipped with 4 voltage and 4 current channels, 32 alarms, and various connectivity options including USB, Ethernet, Wi-Fi, and remote access. The IP67 watertight case makes it ideal for electricians, engineers, and contractors working in outdoor environments.

Key Features

• 4 AmpFlex MA196-24-BK sensors (24-inch waterproof) included
• 4 voltage and 4 current channels with auto-recognition
• Voltage range: 10 to 1,000 V AC/DC (probe-dependent)
• Current range: 200 mA to 12 kA AC / 50 mA to 1,300 A DC (probe-dependent)
• ±0.2% reading accuracy and ±0.2 V voltage accuracy
• 1,000 V CAT III safety rating
• IP67 waterproof case for outdoor and pole-mounted operations
• Expandable SD card storage up to 32 GB
• Powered directly from electrical phase with internal NiMH battery backup
• USB, Ethernet, Wi-Fi with remote access and real-time monitoring
• Motor diagnostics without mechanical sensors
• 32 programmable alarms

Applications

• Predictive and preventive maintenance
• Energy audits and cost optimization
• Building and system monitoring
• IT infrastructure maintenance
• Outdoor electrical system analysis

Included Accessories

• 4× AmpFlex sensors 24 in (waterproof IP67), model 196A-24-BK
• Extra large carrying bag with rubber bottom
• 5× 10 ft black test leads
• Waterproof cap with 5× black alligator clips
• Power adapter 110/230 V with US power cord
• 5 ft USB cable
• 8 GB SD card
• USB SD card reader
• 12 color-coded input ID markers
• 9.6 V NiMH battery (installed)
• Set of 4 large and 5 small water-tight caps
• Quick start guide and USB drive with DataView software and user manual
