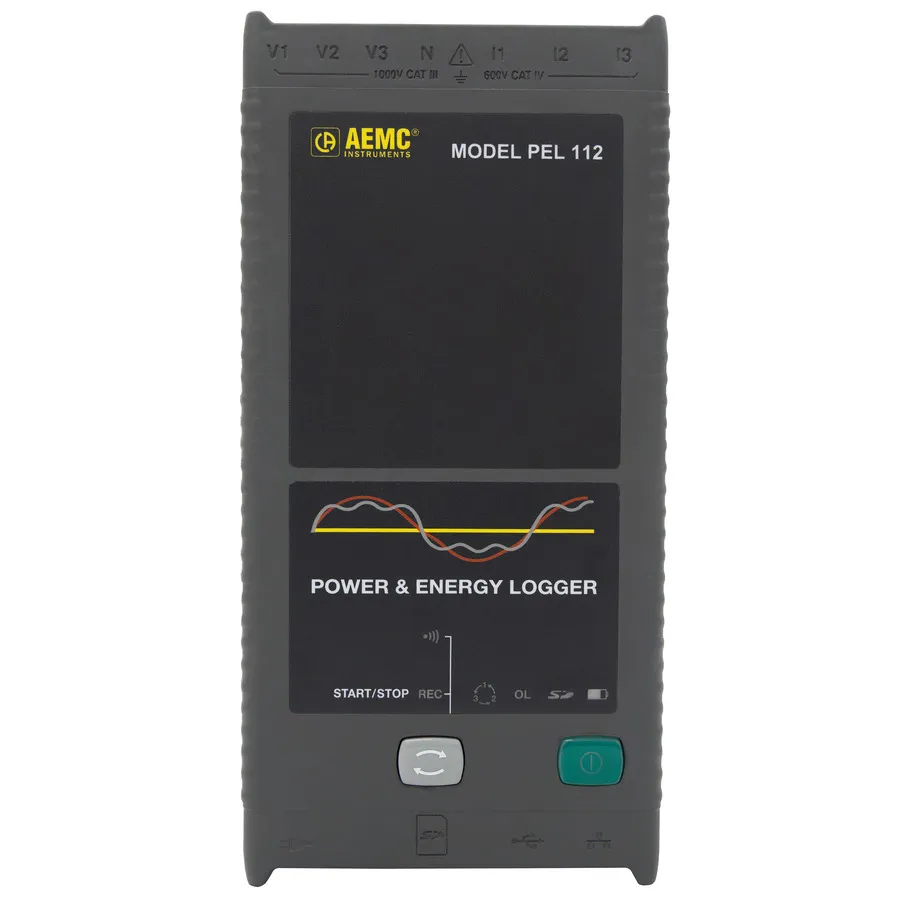

AEMC PEL 112 W/O Sensors Power and Energy Logger

Overview

The AEMC PEL 112 is a versatile three-phase power and energy logger designed for electricians, engineers, and contractors. Without built-in sensors, it allows flexible connection of external probes and current sensors for measurement across residential and commercial electrical systems. Supporting single, dual (split-phase), and three-phase configurations, the device features 3 voltage and 3 current channels with automatic sensor recognition.

Key Features

• 3 voltage and 3 current channels with auto-recognition of sensors
• Voltage range: 10 to 1,000 V AC/DC (probe-dependent)
• Current range: 5 mA to 12 kA AC / 50 mA to 1,300 A DC (probe-dependent)
• ±0.2% reading accuracy and ±0.2 V voltage accuracy
• 600 V CAT IV / 1,000 V CAT III safety rating
• Expandable SD card storage up to 32 GB
• Operating temperature: -20°C to 50°C
• Powered directly from electrical phase with internal NiMH battery backup
• 32 programmable alarms
• USB, Ethernet, Wi-Fi connectivity with remote access
• Motor diagnostics for speed, efficiency, and torque assessment

Applications

• Predictive and preventive maintenance
• Energy audits and cost optimization
• Building and system monitoring
• IT infrastructure maintenance
• Motor efficiency evaluation

Included Accessories

• Tool bag
• 4× 10 ft black test leads in reeling box
• 4× black alligator clips
• 12 color-coded input ID markers
• 8 GB SD card (installed)
• USB SD card reader
• USB type A to type B cable
• 115 V power cord
• NiMH AAA 8.4 V battery (installed)
• Quick start guide and USB drive with DataView software and user manual
