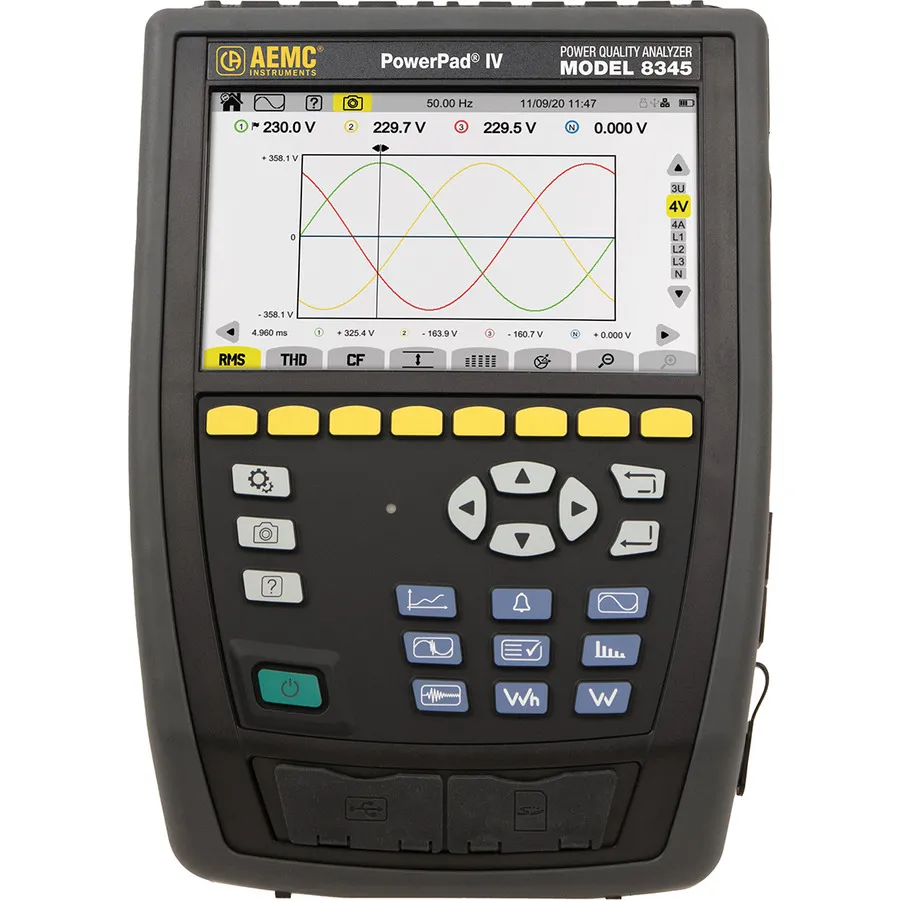

AEMC 8345 Power Quality Analyzer

Overview

The AEMC Instruments 8345 PowerPad IV is a portable, three-phase power quality analyzer designed for technicians and engineers to measure and perform diagnostics on single-, two-, or three-phase electrical networks. It meets IEC 61000-4-30 Class A standards and provides comprehensive power quality analysis with exceptional measurement accuracy and real-time visualization.

Key Features

• IEC 61000-4-30 Class A compliance
• Three-phase, 1000V CAT IV power quality analyzer
• Real-time color waveform display (5 voltage, 4 current channels)
• Harmonics analysis up to 63rd order
• Comprehensive power calculations: W, VA, VAR, S, P, Q, D
• PF, DPF, CF, and THD measurements
• Flicker analysis (Pst & Plt)
• Fast transient event capture and recording
• Wi-Fi, Ethernet, USB, and Web-based communication
• 7-inch color touchscreen display
• Auto-recognition of current sensor types
• True RMS voltage and current measurement

Applications

• Power network quality diagnostics and monitoring
• Three-phase electrical system analysis
• Industrial installation commissioning
• Load studies and power quality verification
• Transient event recording and analysis
• Compliance verification with power quality standards

Included Accessories

• 4 MA193-24-BK Miniflex flexible current sensors
• Voltage measurement leads (5 × 10 ft and 2 × 6 ft)
• USB cable and power adapter with Li-ion battery
• Tool bag with internal carrying pouch
• DataView® software and user manual
