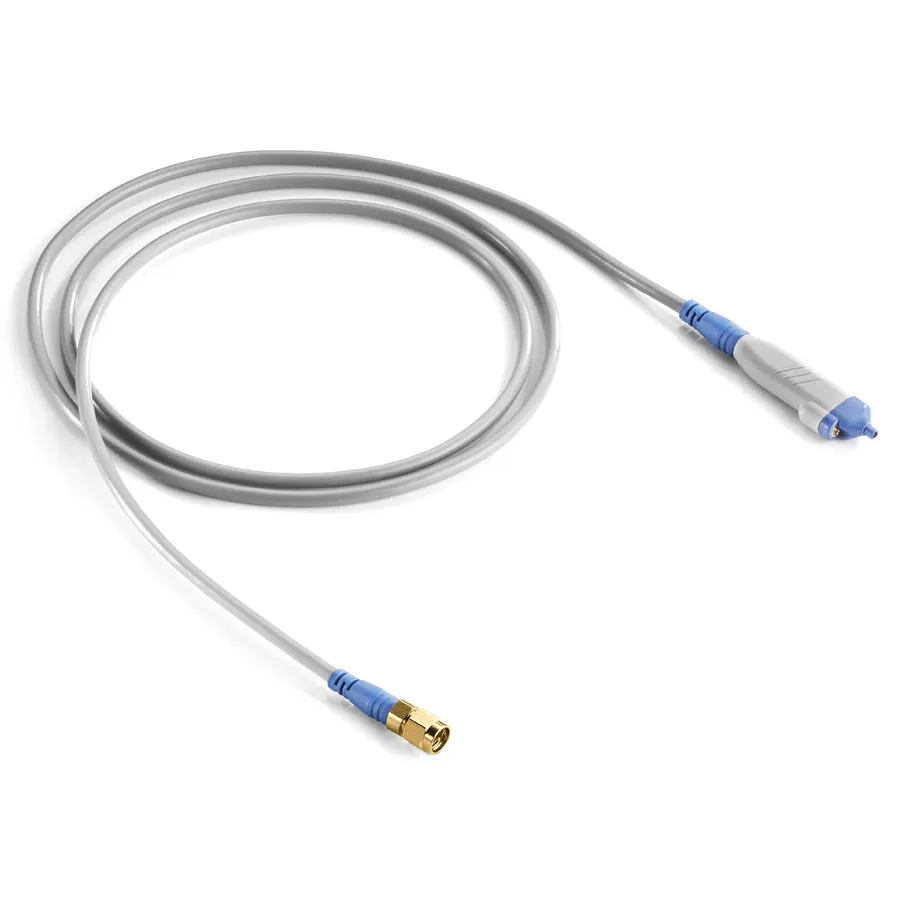

Rohde & Schwarz RT-ZZ80 Passive Broadband Probe
Request a quote
Rohde & Schwarz RT-ZZ80 passive broadband probe offers 8 GHz bandwidth with 10:1 attenuation, 500 Ω impedance, and 20 V RMS maximum for high-speed signal measurements.
Product details
| Model | RT-ZZ80 |
| Manufacturer | Rohde & Schwarz |
| Category | Passive Probes |
| Availability | Made to order |
Description
Overview
The Rohde & Schwarz RT-ZZ80 is an 8 GHz passive broadband transmission line probe featuring a 10:1 attenuation factor and 500 ohm input impedance. It is designed for high-bandwidth measurements with wide dynamic range, supporting input voltages up to 20 V RMS with low inherent noise.
Key Features
- Bandwidth: 8 GHz
- Maximum voltage: 20 V RMS
- 10:1 attenuation factor
- Input impedance: 500 ohm || 0.3 pF
- Transmission line probe design for impedance control
- Wide dynamic range with low noise
- 1.2 m cable with SMA-BNC adapter
Applications
- High-speed digital signal measurements
- Microwave and RF signal analysis
- Precision oscilloscope measurements
- Wide voltage range measurements
Included Accessories
- RT-ZZ80 transmission line probe
- Carrying case with foam inlay
- User manual and data sheet
- Calibration certificate
- 50 signal pins (solder-in type)
- 2 signal pins and 2 signal adapters (square pin)
- 10 ground pins (solder-in) and 2 ground pins (pogo type)
- 2 ground adapters (square pin)
- RT-ZA10 SMA to BNC adapter
- Marker band kit
Specifications
| Bandwidth | 5 GHz |
| Attenuation | 10X |
| Input Capacitance | 0.3 pF |
| Maximum Input Voltage | 20 V |
| Cable Length | 1.2 m |
| Series | RT-Zxx Series |
| Alternate Product Number | 1409.7608.02 |
| Type | Passive Probe |
