Rohde & Schwarz RT-ZH11 Passive Probe

Overview

The Rohde & Schwarz RT-ZH11 is a 400 MHz passive high-voltage probe with 1000:1 attenuation ratio. It is designed for continuous RMS voltages up to 1000 V (CAT II) and peak pulse voltages up to 6000 V (CAT I). The probe offers adjustable low-frequency (LF) and high-frequency (HF) compensation, as well as adjustable DC dividing ratio to optimize performance across various measurement applications.

Key Features

• 400 MHz bandwidth for fast transient capture
• 1000:1 attenuation ratio for wide voltage range
• 1000 V continuous (RMS) CAT II rating
• 6000 V peak (CAT I) for pulse measurements
• 50 MΩ differential input resistance
• 7.5 pF differential input capacitance
• Adjustable LF and HF compensation
• Adjustable DC dividing ratio

Applications

• High-voltage DC and AC measurements in power electronics
• Testing of power supplies and industrial equipment
• Pulse and transient measurements in harsh environments
• High-voltage circuit analysis in research and manufacturing

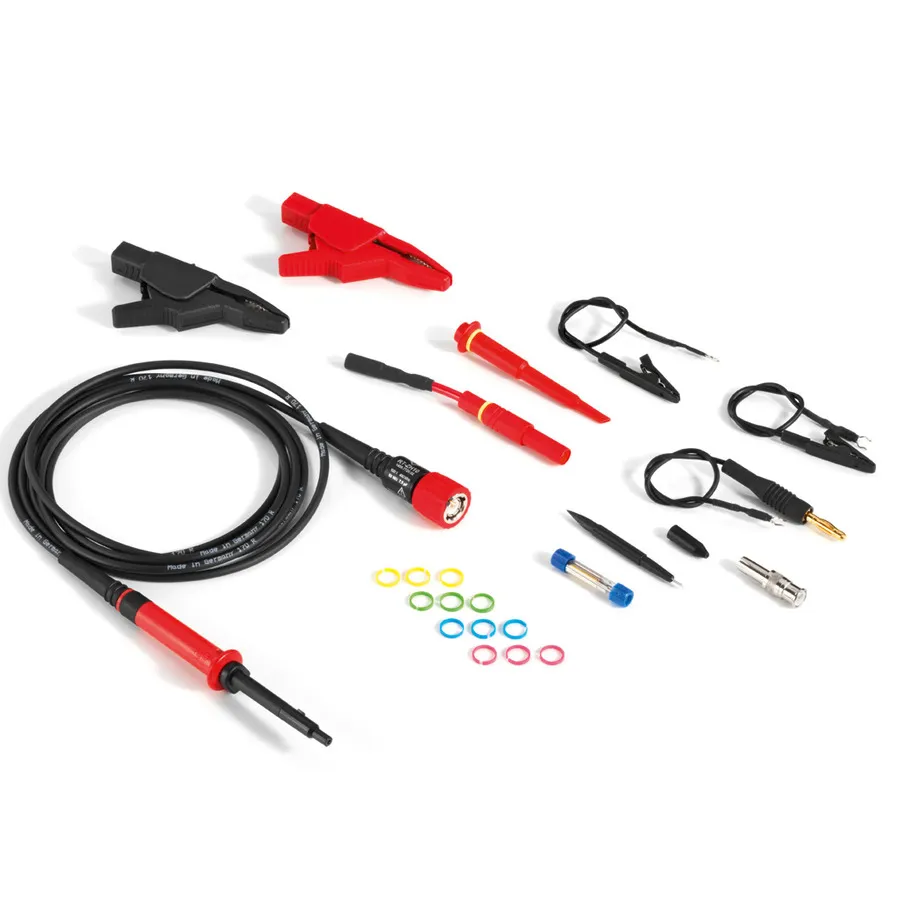

Included Accessories

• Probe RT-ZH11
• Operating manual
• Adjustment tool
• BNC adapter 5.0-L
• Insulating and protection caps
• Coding rings (3x4 colors)
• Ground leads (22 cm and 22 cm to 4 mm banana)
• Safety alligator clips (black and red)
• Solid and spring tips (0.8 mm)
• Sprung hook (5.0-L, red)
• Flexible adapter (5.0-L to 4 mm safety banana)
