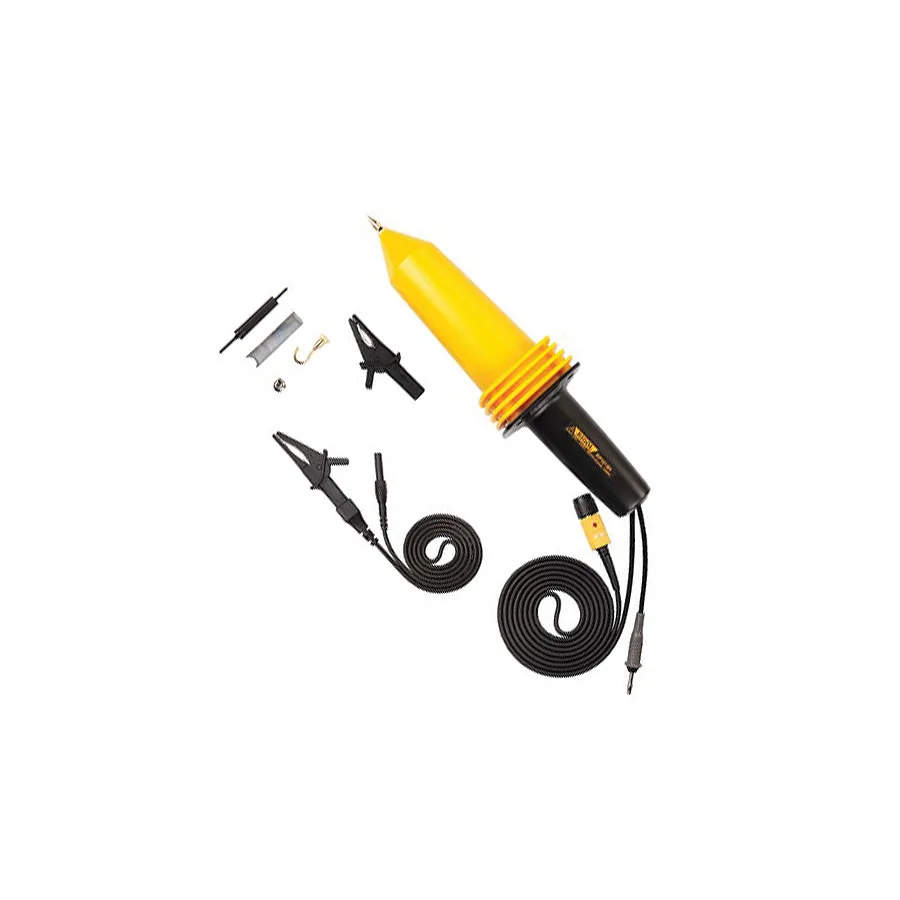

RIGOL RP1018H Passive Probe
Request a quote
RIGOL RP1018H is a high-attenuation passive probe with 1000:1 ratio, 150 MHz bandwidth, and 12 kV maximum input voltage for high-voltage measurement applications.
Product details
| Model | RP1018H |
| Manufacturer | RIGOL |
| Category | Passive Probes |
| Availability | Made to order |
Description
Overview
The RIGOL RP1018H is a passive oscilloscope probe designed for high-voltage measurement applications. It features a 1000:1 attenuation ratio and supports input voltages up to 12 kV, making it suitable for demanding measurement scenarios. With 150 MHz bandwidth and fast 8.8 ns risetime, the probe delivers accurate waveform capture across a wide frequency range.
Key Features
- 1000:1 attenuation ratio
- 150 MHz bandwidth
- Maximum input voltage: 12 kV
- Input impedance: 100 MĪ©
- Input capacitance: 1.5 pF
- Rise time: 8.8 ns
- CAT II rated
Applications
- High-voltage circuit testing
- Power distribution measurement
- Industrial equipment analysis
- Research and development
Included Accessories
- High-voltage test artifact (CRT probe tip)
- Adjustment bar
- Carrying case
Specifications
| Bandwidth | 150 MHz |
| Attenuation | 1000X |
| Input Capacitance | 1.5 pF |
| Maximum Input Voltage | 12 kV |
| Cable Length | 2 m |
| Safety Rating | CAT2 |
| Series | RP Series |
