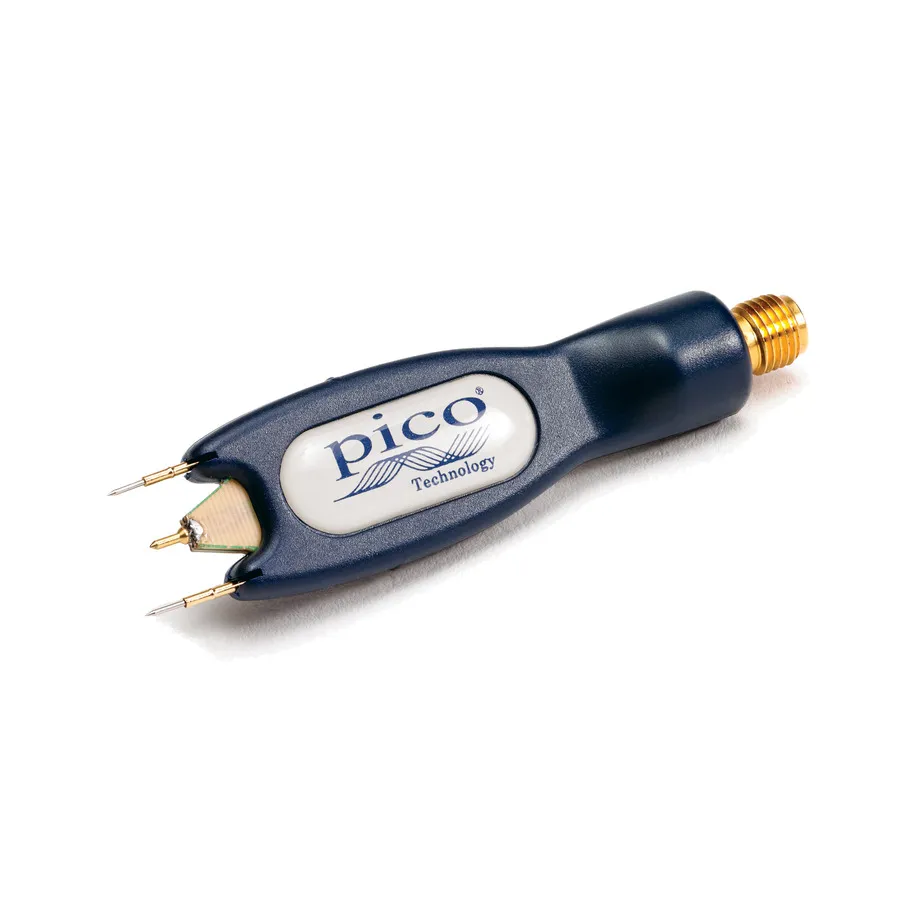

Pico Technology PicoConnect 922 Passive Oscilloscope Probe

Overview

The Pico Technology PicoConnect 922 is a high-performance 20:1 passive oscilloscope probe designed for low-invasive probing of high-speed digital transmission lines and ports supporting data rates up to 18 Gb/s (9 GHz). The DC coupling enables complete measurement of signals from DC to the full bandwidth, making it suitable for all signal types including those with DC offset components.

Key Features

• 20:1 attenuation ratio for reduced-amplitude gigabit data streams
• 6 GHz bandwidth for high-speed digital signal capture
• DC coupling for complete DC-to-AC signal measurements
• 0.3 pF tip capacitance for minimal system disruption
• Low-impedance passive design optimized for 40–60Ω transmission lines
• Market-leading pulse fidelity and inherent low noise
• Fully interchangeable SMA(f) probe head

Applications

• High-speed digital transmission line probing
• Complete DC-offset signal measurements
• Power supply and bias point measurements
• Eye diagram and spectrum analysis
• Backplane and interconnect probing
• System-level signal integrity characterization

Included Accessories

• PicoConnect 900 Series probe head
• 60 cm SMA(m-m) precision unsleeved high-flex coaxial cable
• Pack of replacement probe tips
• Two coils of solder-in gold-plated wire
• Quick Start Guide
• Storage and carry case
