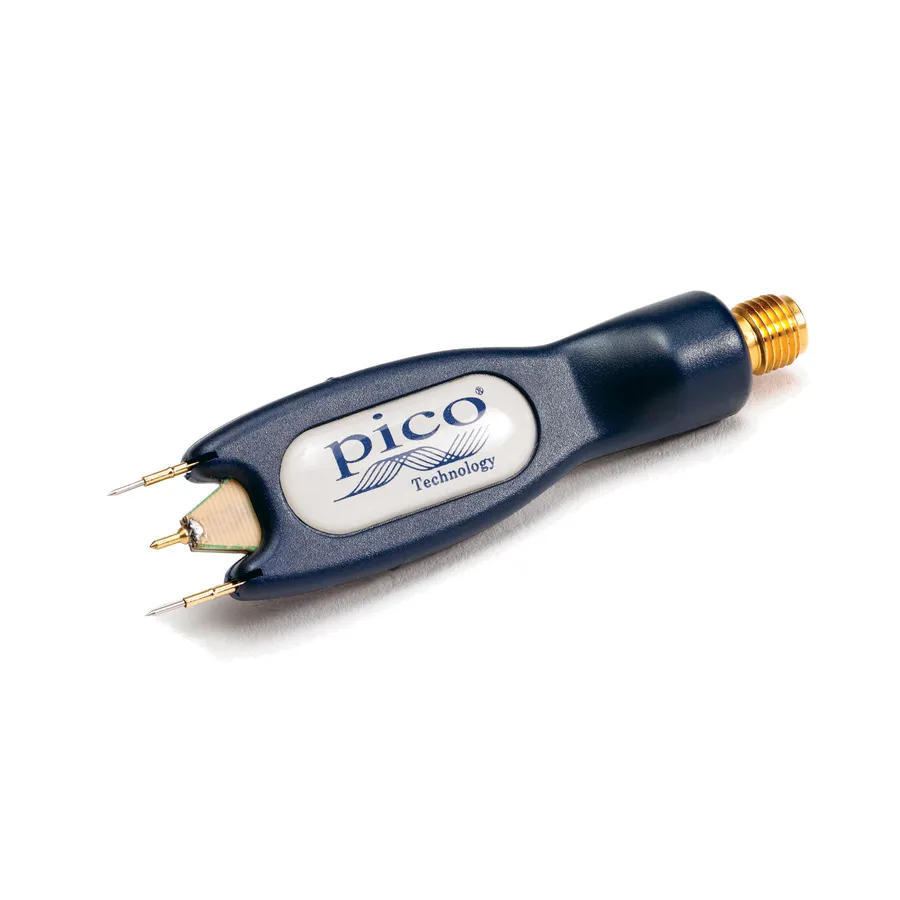

Pico Technology PicoConnect 916 Passive Oscilloscope Probe
Request a quote
Pico Technology PicoConnect 916 is a 5GHz DC-coupled passive oscilloscope probe with 5:1 attenuation, 0.3pF tip capacitance, and high-speed analog application.
Product details
| Model | PicoConnect 916 |
| Manufacturer | Pico Technology |
| Category | Passive Probes |
| Availability | Made to order |
Description
Overview
The Pico Technology PicoConnect 916 is a 5:1 passive oscilloscope probe designed for low-invasive probing of high-voltage analog and pulse applications. This DC-coupled probe features high input resistance to minimize loading at the probe tip, with a 5 GHz bandwidth and comes equipped with a 600 mm precision SMA coaxial cable and SMA-to-BNC adaptor for flexible oscilloscope connectivity.
Key Features
- 5:1 attenuation ratio for flexible measurement scaling
- 5 GHz bandwidth for high-speed signal capture
- DC coupling for all-frequency measurements
- 0.3 pF tip capacitance for minimal loading
- High input impedance design
- Low-impedance passive construction with low noise and linear response
Applications
- High-voltage analog signal probing
- Pulse and transient measurements
- Lower-bandwidth oscilloscope interface
- Minimal circuit loading measurements
Included Accessories
- PicoConnect 900 Series probe head
- 60 cm SMA(m-m) precision unsleeved high-flex coaxial cable
- Pack of replacement probe tips
- Two coils of solder-in gold-plated wire
- SMA-to-BNC adaptor
- Quick Start Guide
- Storage and carry case
Specifications
| Bandwidth | 5 GHz |
| Attenuation | 5X |
| Input Capacitance | 0.3 pF |
| Maximum Input Voltage | 8 V |
| Series | PicoConnect 900 RF Series |
| Alternate Product Number | TA283 |
