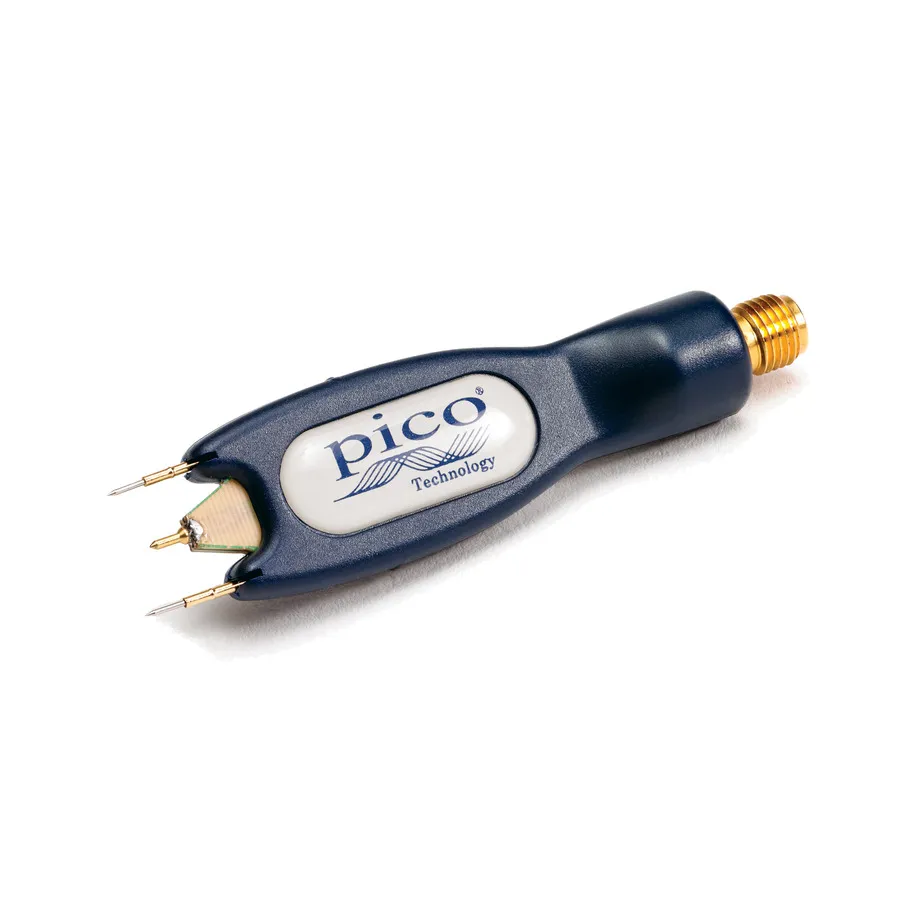

Pico Technology PicoConnect 915 Passive Probe
Request a quote
Pico Technology PicoConnect 915 is a 5:1 5 GHz AC-coupled passive probe designed for high-voltage analog and pulse measurements with lower input loading.
Product details
| Model | PicoConnect 915 |
| Manufacturer | Pico Technology |
| Category | Passive Probes |
| Availability | Made to order |
Description
Overview
The PicoConnect 915 is a 5:1 AC-coupled passive probe designed for high-voltage analog and pulse measurements. With higher input resistance than comparable low-impedance probes, it provides lighter loading at the probe tip, making it ideal for applications where minimal circuit loading is critical.
Key Features
- 5:1 attenuation ratio for extended measurement range
- 5 GHz bandwidth for high-frequency measurements
- AC coupling for AC signal analysis
- Higher input resistance for lower loading at probe tip
- 600 mm light-gauge coaxial cable (TA312 — SMA(m-m) sleeved)
- SMA-to-BNC adaptor for standard oscilloscope connectivity
- Replacement probe tips included
- Solder-in gold-plated wire coils for flexible connections
Applications
- High-voltage analog signal measurement
- Pulse characterization and analysis
- High-frequency circuit probing with minimal loading
- RF and microwave probe measurements
Included Accessories
- PicoConnect 900 Series probe head
- 60 cm SMA(m-m) precision light-gauge sleeved coaxial cable (TA312)
- Pack of replacement probe tips
- Two coils of solder-in gold-plated wire
- SMA-to-BNC adaptor
- Quick Start Guide
- Storage and carry case
Specifications
| Bandwidth | 5 GHz |
| Attenuation | 5X |
| Input Capacitance | 0.3 pF |
| Maximum Input Voltage | 8 V |
| Series | PicoConnect 900 RF Series |
| Alternate Product Number | TA282 |
