Pico Technology Pico Connect 920 Passive Probe Kit

Overview

The Pico Connect 920 Kit is a high-bandwidth passive probe solution designed for gigabit RF and microwave testing. This six-probe kit features interchangeable probe heads with 6–9 GHz bandwidth capabilities, enabling precise measurements across modern high-frequency applications.

Key Features

• Six PicoConnect 900 Series probe heads with interchangeable design
• Bandwidth: 6–9 GHz across the kit for high-frequency applications
• Attenuation options: 20:1, 10:1, and 5:1
• Coupling: AC and DC modes
• Two 60 cm precision high-flex coaxial cables
• Gold-plated replacement probe and ground tips
• Includes solder-in gold-plated wire coils
• Rugged storage and carry case

Applications

• Gigabit RF and microwave circuit measurements
• High-speed pulse measurements and characterization
• High-frequency signal integrity analysis
• Advanced PCB and module design verification

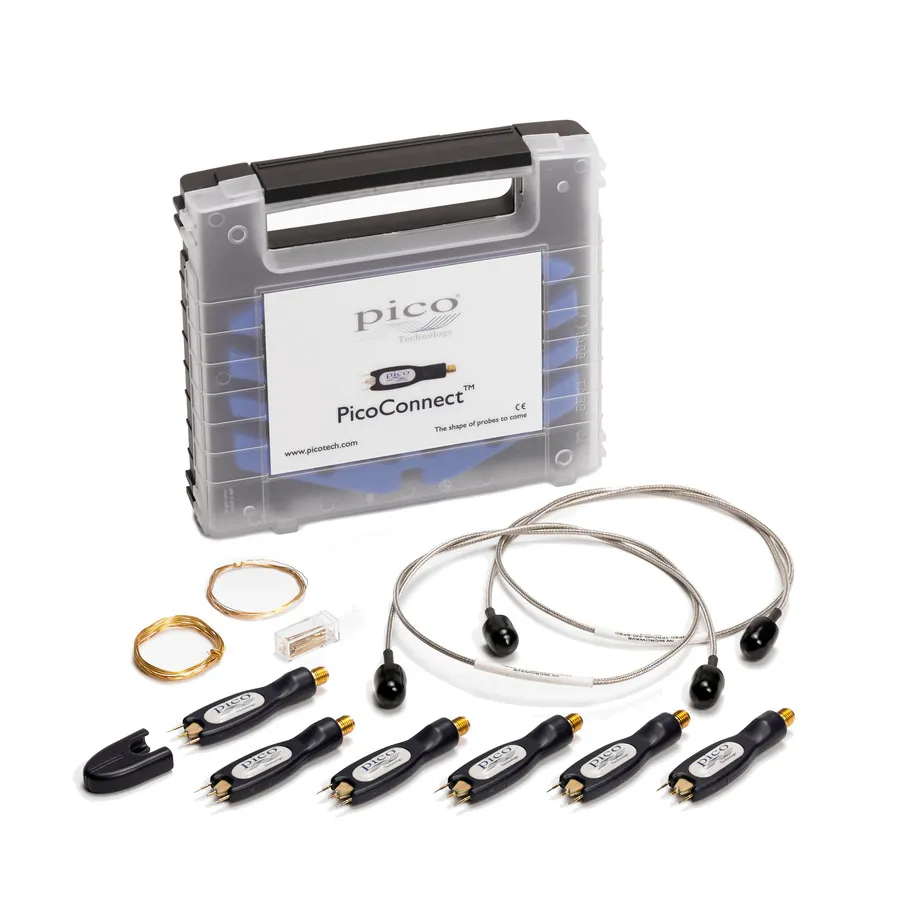

Included Accessories

• Six probe heads with interchangeable tips
• Two 60 cm precision high-flex coaxial cables (TA263 — SMA(m-m) unsleeved)
• Quick Start Guide
• Set of replacement gold-plated probe and ground tips
• Two coils of solder-in gold-plated wire
• Storage and carry case
