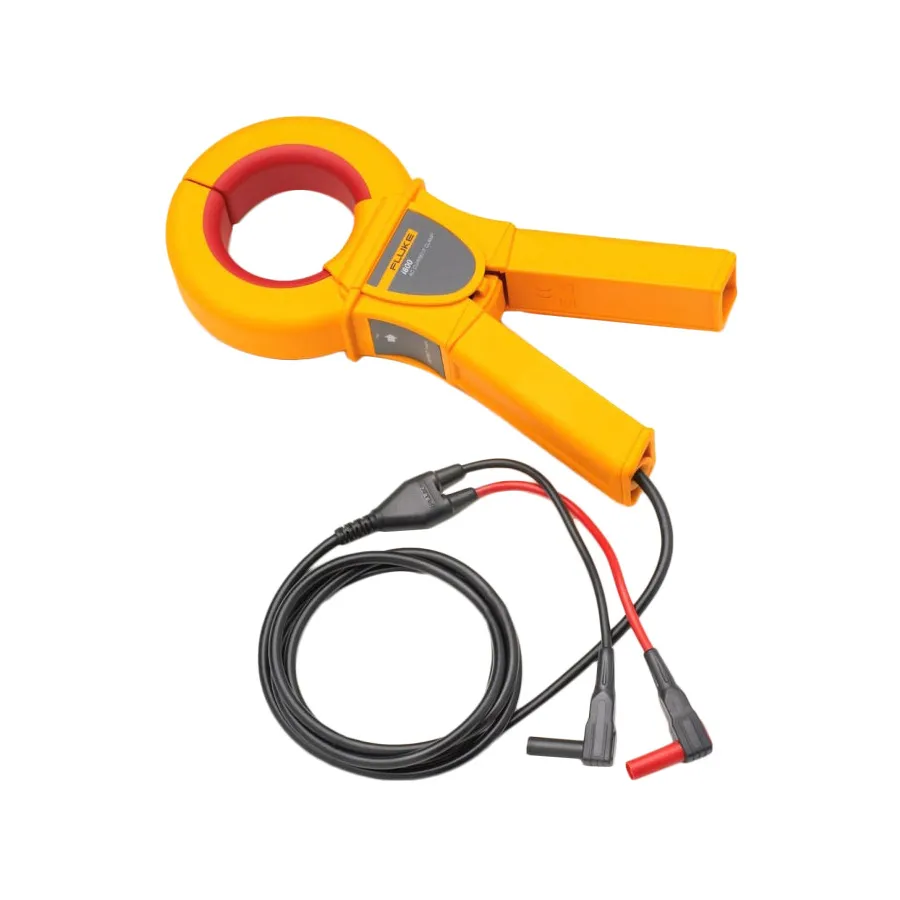

Fluke I800 AC Current Clamp
Request a quote
Fluke I800 AC current clamp measures 100 mA to 800 A with CAT III 600V rating, 30 Hz to 10 kHz frequency range, and accepts up to 54 mm diameter conductors.
Product details
| Model | I800 |
| Manufacturer | Fluke |
| Category | Panel Meters & Displays |
| Availability | Made to order |
Description
Overview
The Fluke i800 AC Current Clamp is a non-intrusive current measurement probe designed for use with digital multimeters, recorders, and other test equipment. It extends the current measuring capability of a digital multimeter to 800 A AC, allowing technicians to measure current without breaking the circuit or interrupting power.
Key Features
- Measures AC current from 100 mA to 800 A rms
- Frequency range of 30 Hz to 10 kHz
- Maximum non-destructive current rating of 1500 A rms (50/60 Hz)
- Accepts conductors up to 54 mm (2.1 in) diameter
- 1000:1 conversion factor for easy calculation
- CAT III 600 V safety rating
- Rugged positive action clamp design
- Compatible with 4 mm banana plug connections
Applications
- High-current circuit troubleshooting
- Load monitoring and power analysis
- Equipment maintenance and diagnostics
- Electrical system testing
Specifications
| Series | i-Series |
| Clamp Type | AC Clamp |
| Compatibility | AC Millivolt Instruments |
