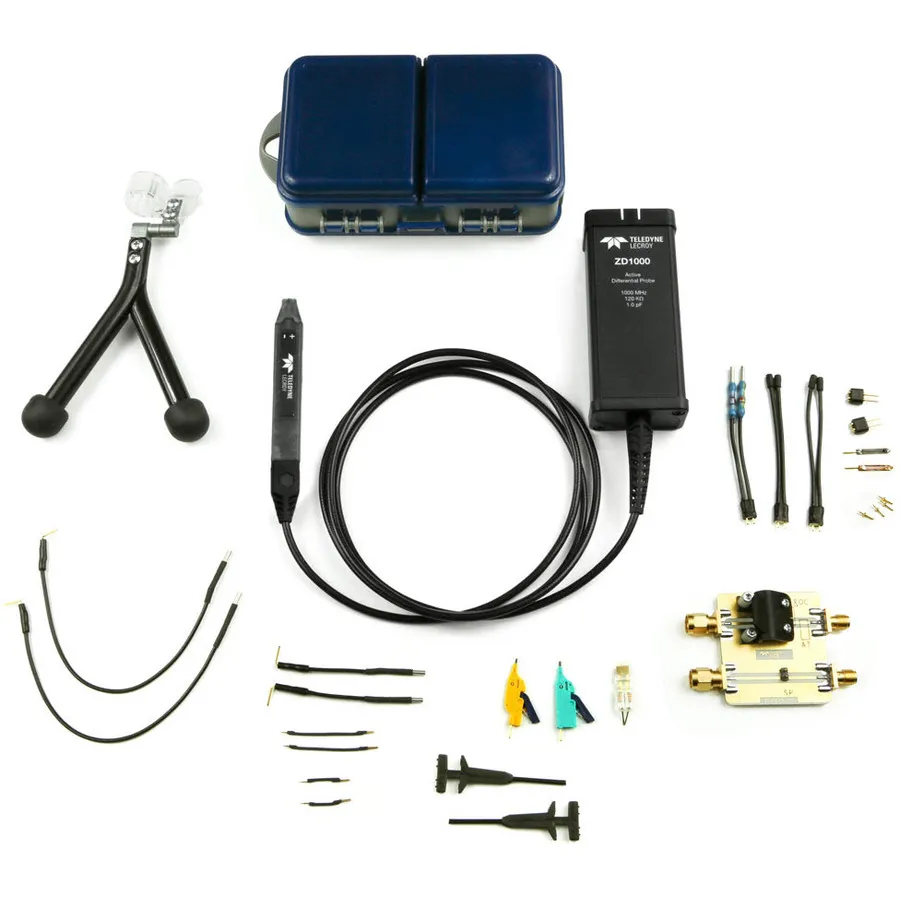

Teledyne LeCroy ZD1000 Active Differential Probe
Request a quote
Teledyne LeCroy ZD1000 is an active differential probe with 1 GHz bandwidth, 1 pF input capacitance, and ±8V offset range for automotive and power applications.
Product details
| Model | ZD1000 |
| Manufacturer | Teledyne LeCroy |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Teledyne LeCroy ZD1000 is an active differential probe designed for high-frequency measurement applications. With ProBus interface integration, it becomes an integral part of the oscilloscope with transparent gain and offset controls. When used with Teledyne LeCroy digital oscilloscopes, no external power supply is required.
Key Features
- Bandwidth: 1 GHz
- Input capacitance: 1 pF (minimizes loading distortion)
- Impedance: 120 kΩ
- Differential range: 18 Vp-p with ±8V offset
- Common mode range: ±10V
- System noise: 4 mVrms
- ProBus interface for transparent integration
- Extensive tip accessory options
Applications
- Automotive signal measurement
- Serial data probing
- Power electronics testing
- General-purpose high-frequency measurements
Specifications
| Bandwidth | 1 GHz |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 8 V |
| Input Impedance | 120 kΩ |
| Interface | ProBus |
| Series | ZD Series |
| Risetime | 280 ps |
| Type | Differential Probe |
| Warranty | 1 Year |
