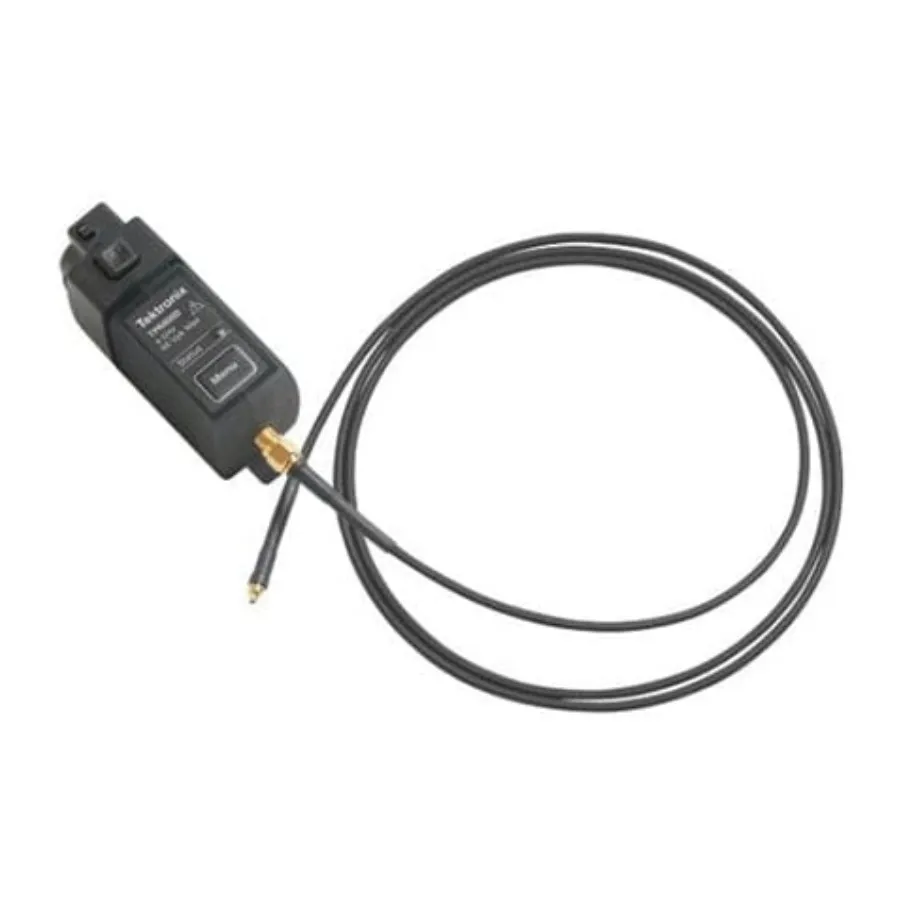

Tektronix TPR4000 Active Power Rail Probe
Request a quote
Tektronix TPR4000 active power rail probe offers 4 GHz bandwidth, 60V DC dynamic range, and 1.25x attenuation for precision oscilloscope measurements.
Product details
| Model | TPR4000 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TPR4000 is an active power rail probe designed for precision oscilloscope measurements in power distribution and rail voltage monitoring applications. With 4 GHz bandwidth and 60V dynamic range, it provides accurate, low-noise signal acquisition on power delivery networks.
Key Features
- Bandwidth: DC to 4 GHz (DC coupling mode), 10 kHz to 4 GHz (DC reject mode)
- Dynamic Range: Up to 60 V DC with 1 Vp-p AC capability
- Attenuation: 1.25x for matched oscilloscope impedance
- Input Impedance: 50 ohm
- Cable Length: 1.3 m with TekVPI connector
Applications
- Power distribution network (PDN) analysis
- Power rail voltage monitoring
- High-frequency power integrity measurements
Specifications
| Bandwidth | 4 GHz |
| Attenuation | 1.25X |
| Maximum Input Voltage | 60 V |
| Input Impedance | 50 kΩ |
| Cable Length | 51.18" |
| Series | TPR Series |
| Operating Temperature Range | 0-50°C |
| Risetime | 0.282 ns |
| Series Compatibility | 6 series MSO, 5 series MSO, 4 Series MSO, 3 Series MDO |
| Type | Active Probe |
| Warranty | 1 Year |
