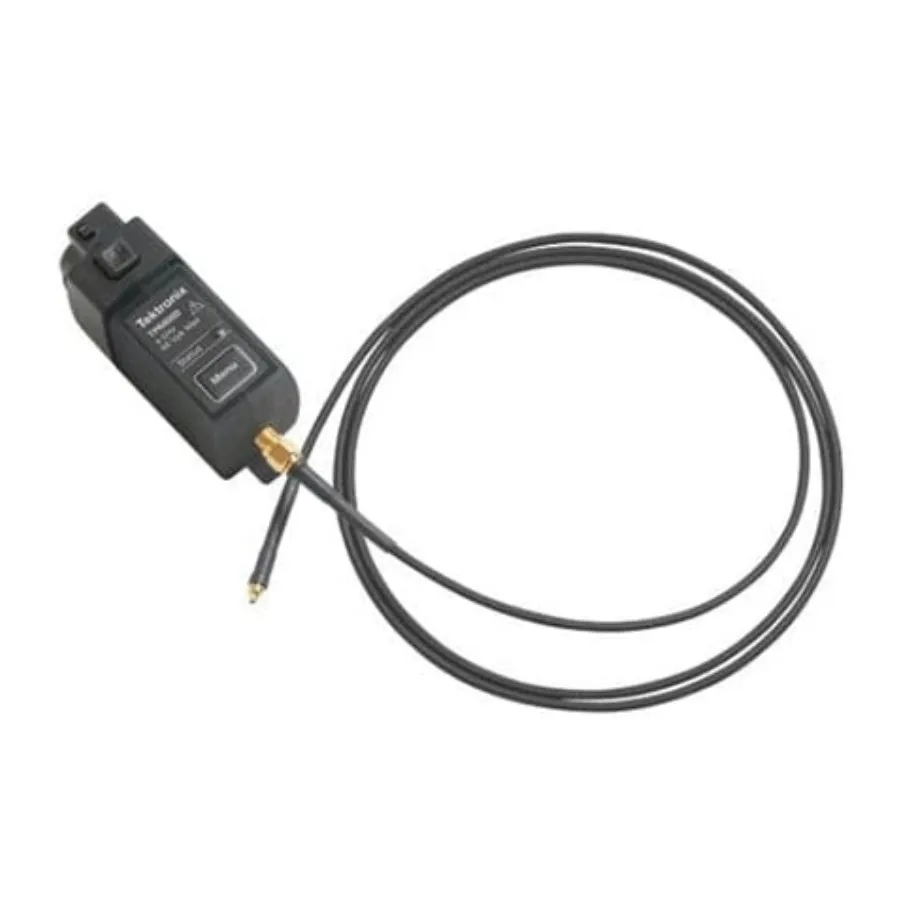

Tektronix TPR1000 Active Power Rail Probe
Request a quote
Tektronix TPR1000 active power rail probe provides 1 GHz bandwidth, 1.25X attenuation, 60V dynamic range, and DC to 1 GHz frequency response for power measurements.
Product details
| Model | TPR1000 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TPR1000 is an active power rail probe designed for high-bandwidth power and ground plane measurements on modern oscilloscopes. With 1 GHz bandwidth capability and low attenuation, it provides precise signal acquisition for power integrity analysis and rail voltage monitoring.
Key Features
- 1 GHz analog bandwidth for high-frequency power measurements
- DC coupling and DC reject modes for flexible measurement configuration
- 1.25x attenuation factor
- 60 V DC dynamic range with 1 Vp-p AC measurement capability
- 50 kΩ input impedance
Specifications
| Bandwidth | 1 GHz |
| Attenuation | 1.25X |
| Maximum Input Voltage | 60 V |
| Input Impedance | 50 kΩ |
| Cable Length | 51.18" |
| Series | TPR Series |
| Operating Temperature Range | 0-50°C |
| Risetime | 0.282 ns |
| Series Compatibility | 6 series MSO, 5 series MSO, 4 Series MSO, 3 Series MDO |
| Type | Active Probe |
| Warranty | 1 Year |
