Tektronix TPP1000 Passive Oscilloscope Probe

Overview

The Tektronix TPP1000 is a high-bandwidth passive oscilloscope probe designed for precise signal measurement on Tektronix oscilloscopes including MDO3000, MDO4000, MSO/DPO5000, and 5 Series MSO models. With extremely low input capacitance and wide bandwidth, it offers the benefits of general-purpose probes with active probe performance, making it ideal for high-speed applications where minimal circuit loading is critical.

Key Features

• 1 GHz probe bandwidth for high-frequency signal capture
• 10X attenuation factor with <4 pF input capacitance for minimal loading
• 300 V CAT II input voltage rating
• Compact probe head design for small-geometry circuit elements
• Rigid tip with secure device-under-test connectivity
• Small MMCX replaceable tip cartridge for hands-free connectivity
• 0.1" (2.54 mm) and 0.062" (1.57 mm) square pin adapters for easy connection to headers and 0402 components
• Replaceable probe tip cartridges for versatility
• Integrated oscilloscope and probe measurement system with automatic scaling
• Built-in AC compensation for optimized signal path across entire frequency range

Applications

• Low-power device testing and measurement
• Manufacturing and engineering test environments
• Service and repair work
• Research and development

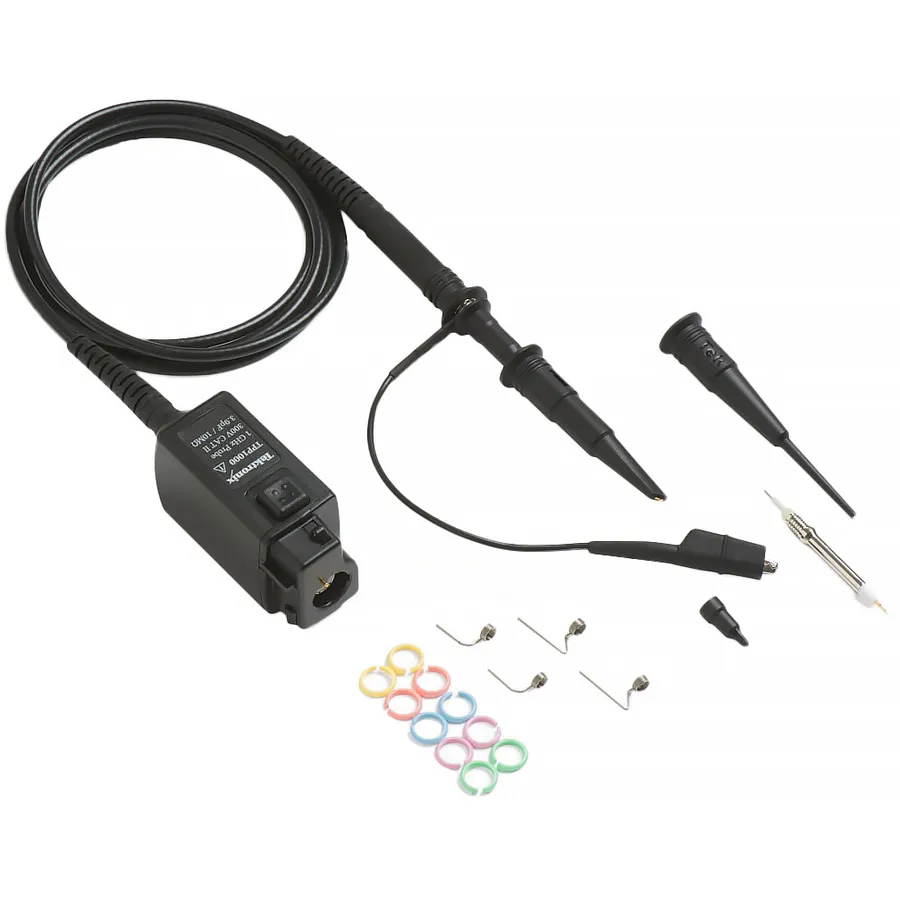

Included Accessories

• Rigid tip
• Pogo tip (pre-installed)
• Short ground springs (2x)
• Long ground springs (2x)
• Alligator ground clip (6 in.)
• Hook tips (regular and micro)
• IC cap (universal, 3.8 mm)
• Insulator sleeve
• Color bands for probe identification (5 pair)
