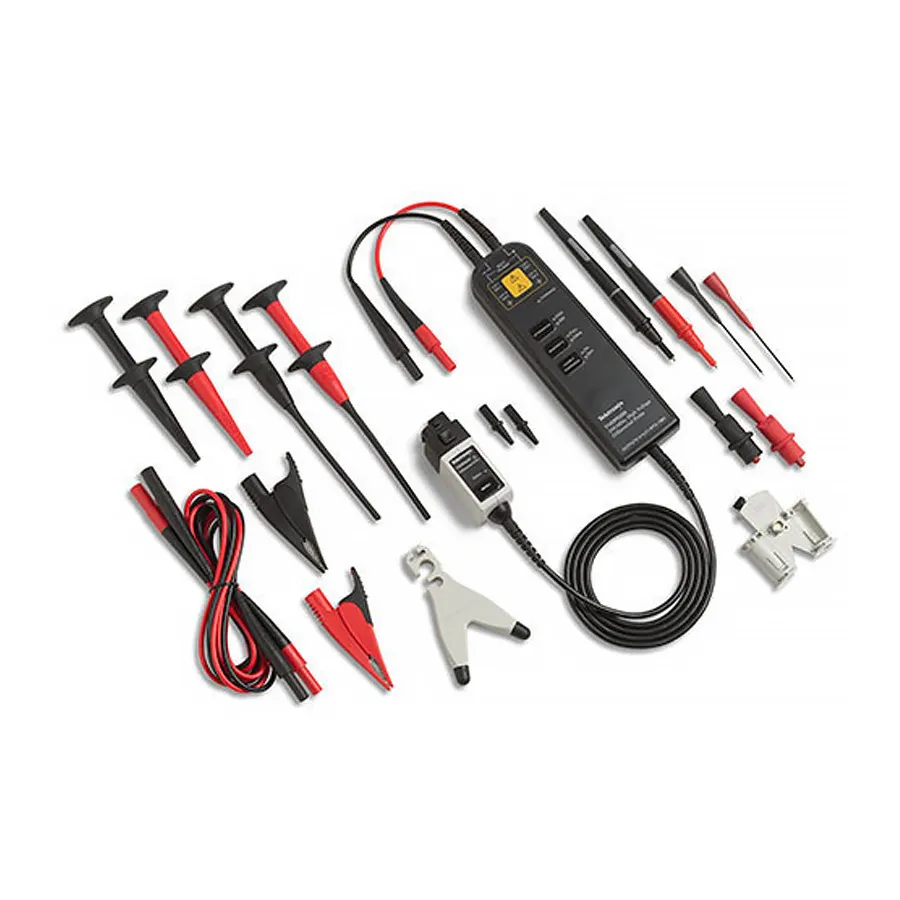

Tektronix TMDP0200 High-Voltage Differential Probe
Request a quote
Tektronix TMDP0200 is a high-voltage differential probe supporting up to 200 MHz bandwidth and ±750 V differential measurements with safety certification.
Product details
| Model | TMDP0200 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TMDP0200 is a high-voltage differential probe designed for medium-voltage floating measurements up to ±750 V differential. It features a 200 MHz bandwidth and TekVPI interface for smart communication with compatible oscilloscopes, making it ideal for power electronics applications and design validation.
Key Features
- 200 MHz bandwidth
- ±750 V differential voltage measurement capability
- Switchable attenuation (25X/250X)
- TekVPI interface for smart probe control on compatible oscilloscopes
- Safety certified for high-voltage floating measurements
- Switchable bandwidth limit
- Overrange indicator with visual and audible warning
Applications
- Switching power supply design and testing
- Motor drive and inverter design
- Power converter design and evaluation
- Electronic ballast design
- CRT display design
- Power device characterization
- Floating differential measurements in high-voltage circuits
Specifications
| Bandwidth | 200 MHz |
| Attenuation | 25X, 250X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 750 V |
| Input Impedance | 5 MΩ |
| Interface | TekVPI |
| Cable Length | 1.5 m |
| Series | TMDP Series |
| Operating Temperature Range | 0-40°C |
| Risetime | 2 ns |
| Type | Differential Probe |
| Warranty | 1 Year |
