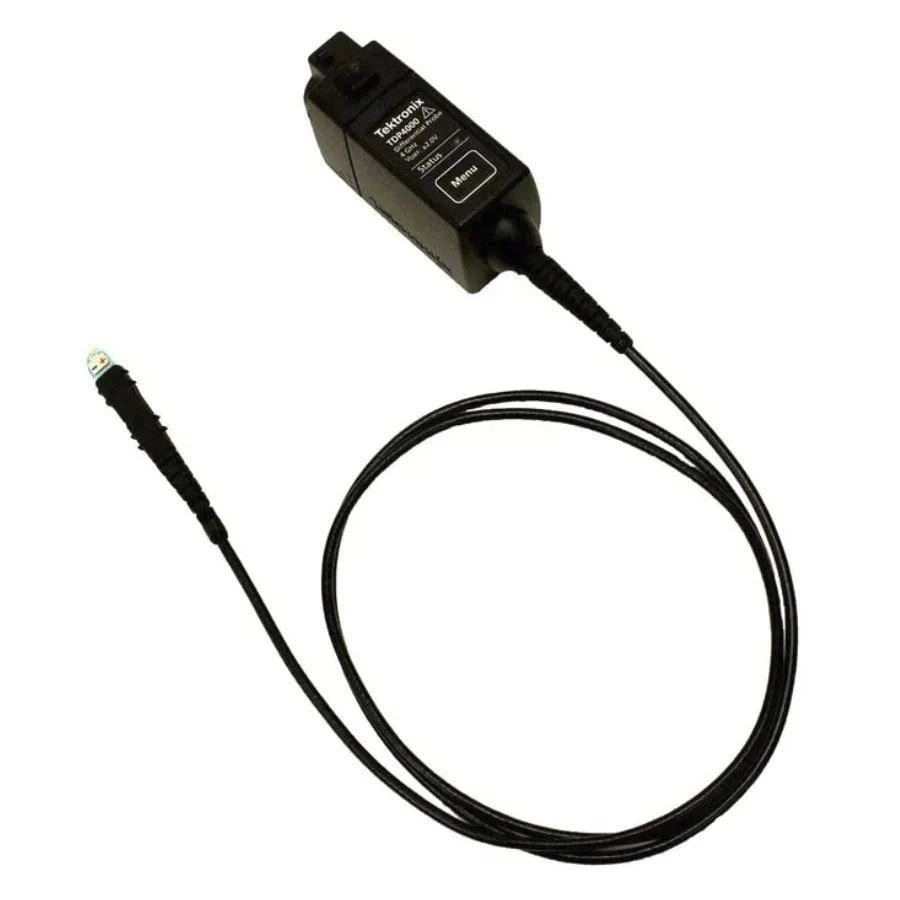

Tektronix TDP4000 Differential Probe

Overview

The Tektronix TDP4000 is a 4GHz differential-ended active probe designed for high-speed electrical measurements with ultra-low input capacitance and versatile device under test connection capabilities. It connects directly to oscilloscopes using the TekVPI probe interface and provides excellent signal reproduction and fidelity for today's digital system designs.

Key Features

• 4 GHz probe bandwidth
• Maximum input voltage ±15V (DC + peak AC)
• Differential input capacitance ≤0.3 pF
• Differential input resistance 100 kilohms
• Common mode input range +5V to -4V
• Excellent common mode rejection
• Low capacitive and resistive loading
• Compact probe head for probing small geometry circuit elements
• DUT attachment accessories for fine-spaced surface-mount devices
• 48-inch cable length

Applications

• High-frequency oscilloscope measurements on digital systems
• Signal acquisition with minimal DUT loading
• Probing small-geometry and surface-mount devices
• Bandwidth-limited testing up to 4 GHz

Included Accessories

• Certificate of Traceable Calibration Standard
• Nylon carrying case
• Accessory kit containing 8 straight pins, 2 longhorn VIA adapters, solder-down tips (1 inch and 3 inch), Y-lead adapter, 3 micro circuit test tips, tip saver, 3-inch ground lead, and marker band set
