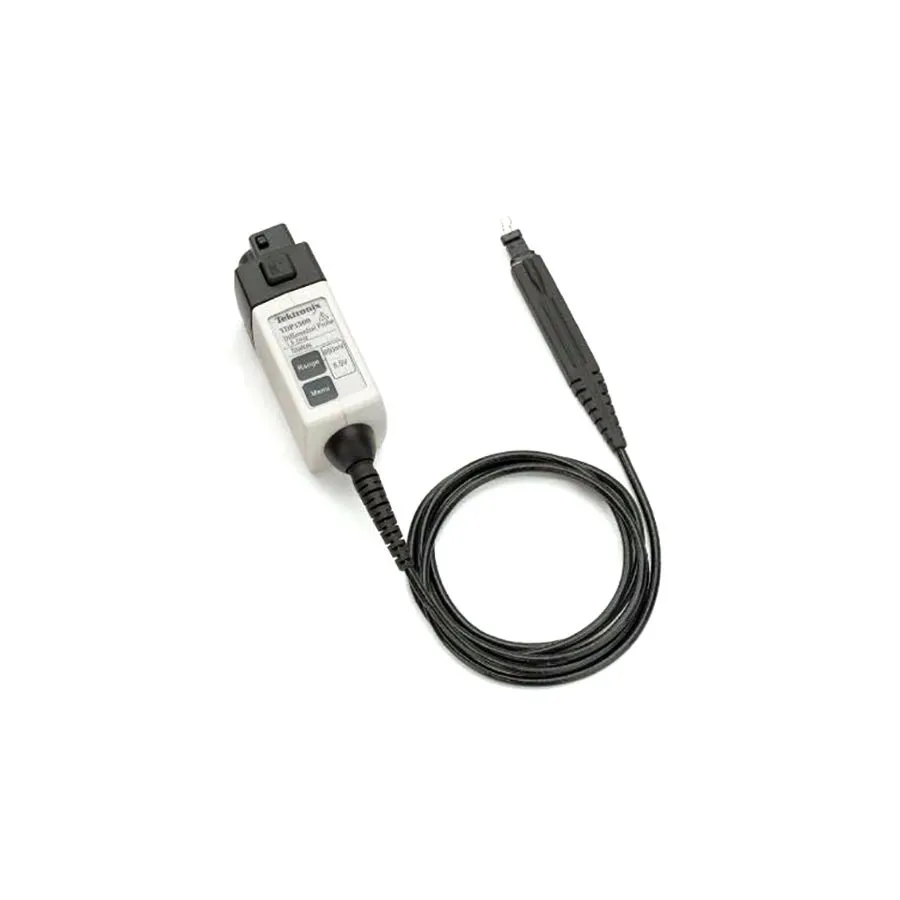

Tektronix TDP1500 Differential Probe

Overview

The Tektronix TDP1500 is a 1.5 GHz bandwidth differential probe designed for high-speed signal acquisition and measurement fidelity in digital system designs. With ultra-low input capacitance and versatile device under test (DUT) connection capabilities, this active probe reduces loading effects and maximizes system bandwidth when used with TekVPI interface oscilloscopes.

Key Features

• 1.5 GHz bandwidth
• 1X and 10X attenuation settings
• Maximum input voltage ±25 V (DC + pk AC)
• ≤1 pF differential input capacitance
• 200 kilohms differential input resistance
• Excellent common mode rejection
• Low capacitive and resistive loading
• Compact probe head size for probing small geometry circuit elements
• Direct connection to TekVPI oscilloscope interface
• 1.2 meter cable length

Applications

• High-speed digital circuit measurements
• Differential signal acquisition on printed circuit boards
• Surface mount device (SMD) testing with miniature connection accessories

Included Accessories

• Certificate of Traceable Calibration Standard
• Nylon carrying case
• Accessory kit: straight pins, longhorn VIA adapters, solder down tips, Y-lead adapter, micro circuit test tips, tip saver, ground lead, and marker bands
