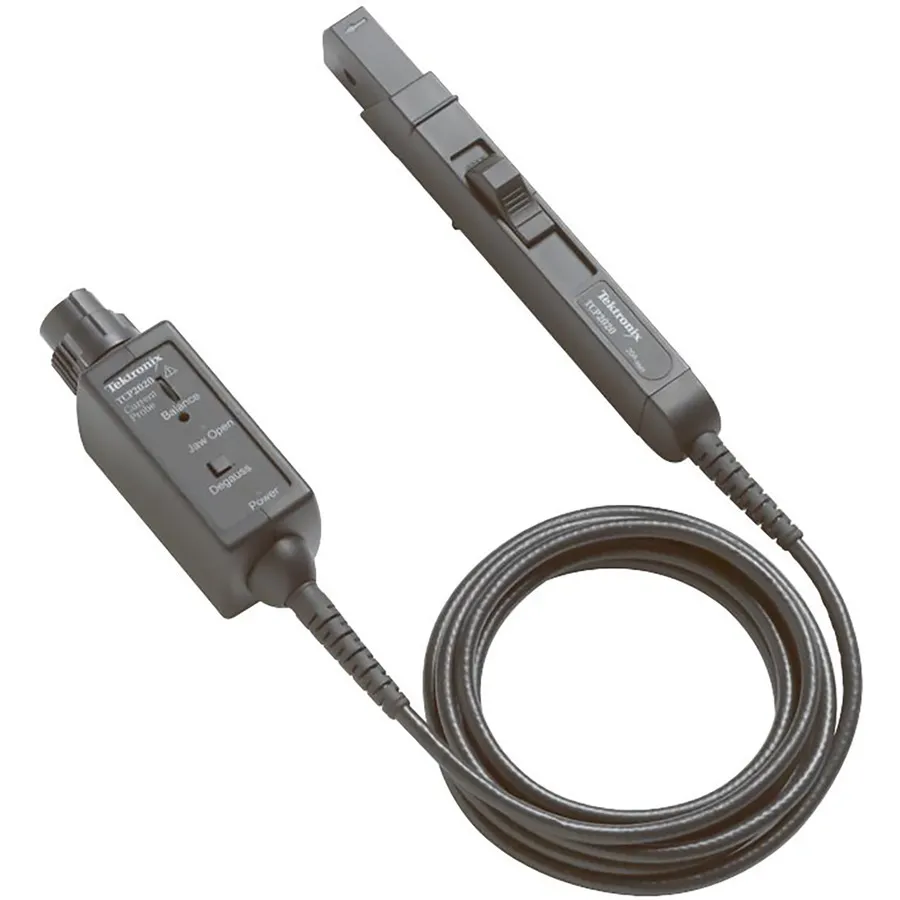

Tektronix TCP2020 AC/DC Current Probe
Request a quote
Tektronix TCP2020 is an AC/DC current probe with 50 MHz bandwidth, 20 A DC/ARMS capability, 10 mA sensitivity, and compatibility with any BNC-equipped oscilloscope.
Product details
| Model | TCP2020 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TCP2020 is a high-performance AC/DC current probe designed for use with any oscilloscope equipped with BNC inputs and greater than 100 kΩ input termination. It provides 50 MHz measurement bandwidth and delivers excellent accuracy at current levels as low as 10 mA, supporting today's demanding current measurement requirements in power electronics and semiconductor testing.
Key Features
- 50 MHz bandwidth for high-speed current transient measurement
- 20 A DC and 20 ARMS AC measurement capability
- 100 A peak pulse current for inrush and transient testing
- Excellent 10 mA minimum current sensitivity
- Powered by AC adapter for field deployment
- Degauss button and thumbwheel DC offset adjustment
- Safety certified for reliable operation
- Works with any instrument with BNC inputs and >100 kΩ termination
Applications
- Power supply design and troubleshooting
- Semiconductor device characterization
- Electronic ballast and lighting system analysis
- Industrial and consumer electronics testing
- Mobile communication circuit analysis
- Motor drive and transportation system measurement
Included Accessories
- Probe ground lead (6 inch)
- Nylon carrying case
- AC adapter
- Instruction manual (English)
Specifications
| Maximum Current | 20 A |
| Input Coupling | AC/DC |
| Bandwidth | 50 MHz |
| Maximum Input Voltage | 150 V |
| Safety Rating | CAT2 |
| Cable Length | 2 m |
| Series | TCP Series |
| Dimensions | 5.8 x 0.6 x 1.2" |
| Minimum Current | 10 mA |
| Operating Temperature Range | 0-50°C |
| Peak Current | 100 A |
| Relative Humidity Range | 5-95% |
| Risetime | 7 ns |
| Warranty | 1 Year |
