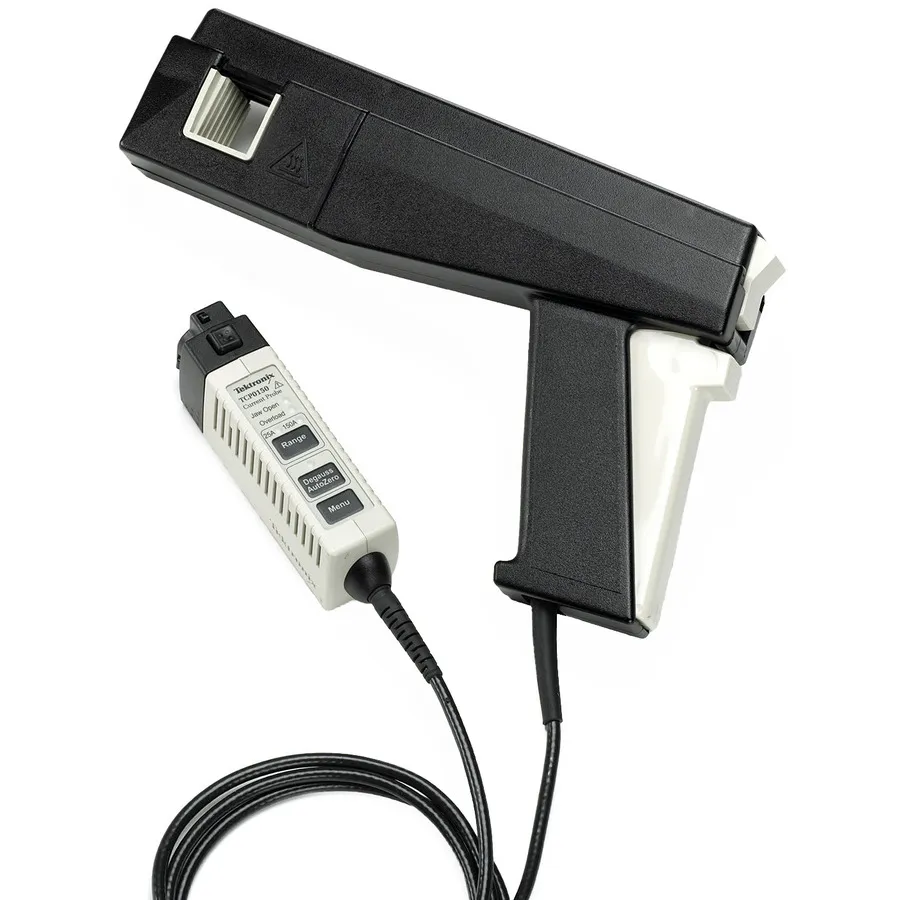

Tektronix TCP0150 AC/DC Current Probe
Request a quote
Tektronix TCP0150 AC/DC current probe with 150A capability, 20MHz bandwidth, and 5mA minimum measurement, ideal for oscilloscope testing.
Product details
| Model | TCP0150 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TCP0150 is a high-performance AC/DC current probe designed for direct connection to oscilloscopes via the TekVPI™ probe interface. It offers 20 MHz bandwidth with selectable 25 A and 150 A measurement ranges, enabling accurate measurement from 5 mA to 150 A DC with low noise and minimal drift. The split-core probe head allows easy connection to conductors without disconnecting circuits.
Key Features
- 20 MHz bandwidth for fast transient capture
- 150 A DC and ARMS measurement capability with 500 A peak pulse rating
- 5 mA minimum measurement for low-current sensitivity
- Rise time < 17.5 ns
- Typically < 1% DC gain error for high accuracy
- Direct TekVPI™ connection with automatic units scaling and readout
- Low noise and minimal DC drift
- Split-core construction for non-invasive measurement
- Remote GPIB/USB probe control through oscilloscope
- Easy degauss and AutoZero operation
Applications
- Power supply testing and analysis
- Semiconductor device characterization
- Power inverter and converter design
- Electronic ballast development
- Motor drive and industrial electronics
- Transportation system diagnostics
Included Accessories
- Protective cover
- Certificate of traceable calibration
- Data standard cable
Specifications
| Maximum Current | 150 A |
| Input Coupling | AC/DC |
| Bandwidth | 20 MHz |
| Maximum Input Voltage | 600 V |
| Safety Rating | CAT1 | CAT2 | CAT3 |
| Cable Length | 2 m |
| Series | TCP Series |
| Dimensions | 10.55 x 1.6 x 6.13" |
| Minimum Current | 5 mA |
| Operating Temperature Range | 0-50°C |
| Peak Current | 500 A |
| Relative Humidity Range | 5-95% |
| Risetime | 17.5 ns |
| Warranty | 1 Year |
