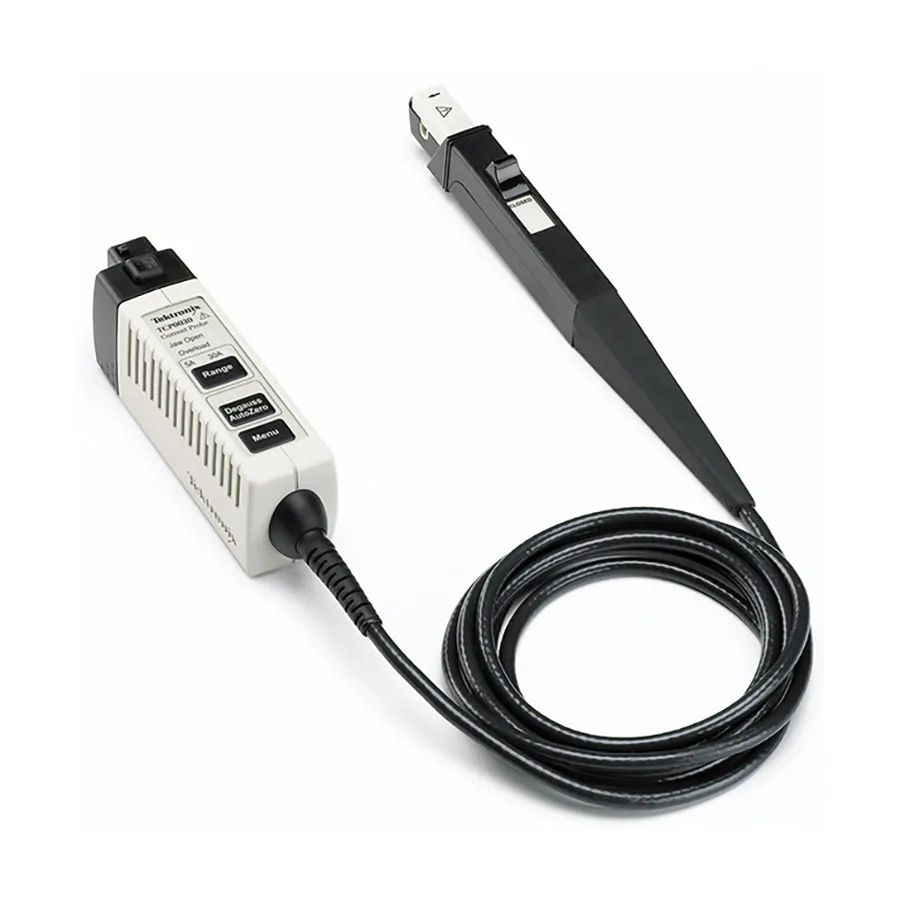

Tektronix TCP0030A AC/DC Current Probe
Request a quote
Tektronix TCP0030A is a 30A AC/DC current oscilloscope probe with 120 MHz bandwidth, 1 mA minimum current measurement, and split-core design.
Product details
| Model | TCP0030A |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TCP0030A is a high-performance AC/DC current probe designed for direct connection to oscilloscopes with the TekVPI probe interface. It provides 120 MHz of bandwidth with selectable 5 A and 30 A measurement ranges, along with exceptional low-current measurement accuracy down to 1 mA. The split-core construction allows easy circuit connection without interrupting the circuit under test.
Key Features
- Bandwidth: 120 MHz
- Current measurement range: 1 mA to 30 A with selectable 5 A and 30 A ranges
- DC gain error: typically less than 1%
- Rise time: less than 2.92 ns
- Peak pulse capability: 50 A
- Automatic units scaling and on-screen readout via TekVPI oscilloscopes
- Push-button degauss and AutoZero functionality
- Remote GPIB/USB probe control
- Low noise and DC drift
- Split-core construction for easy circuit connection
Applications
- Power supplies
- Semiconductor devices
- Power inverter/converters
- Electronic ballasts
- Industrial and consumer electronics
- Mobile drives and motor drives
- Transportation systems
Included Accessories
- Instruction manual
- Probe ground lead (6 in length)
- Nylon carrying case
- Certificate of traceable calibration
Specifications
| Maximum Current | 30 A |
| Input Coupling | AC/DC |
| Bandwidth | 120 MHz |
| Maximum Input Voltage | 150 V |
| Safety Rating | CAT2 |
| Cable Length | 2 m |
| Series | TCP Series |
| Dimensions | 7.77 x 0.62 x 1.25" |
| Minimum Current | 1 mA |
| Operating Temperature Range | 0-50°C |
| Peak Current | 50 A |
| Relative Humidity Range | 5-95% |
| Risetime | 2.92 ns |
| Warranty | 1 Year |
