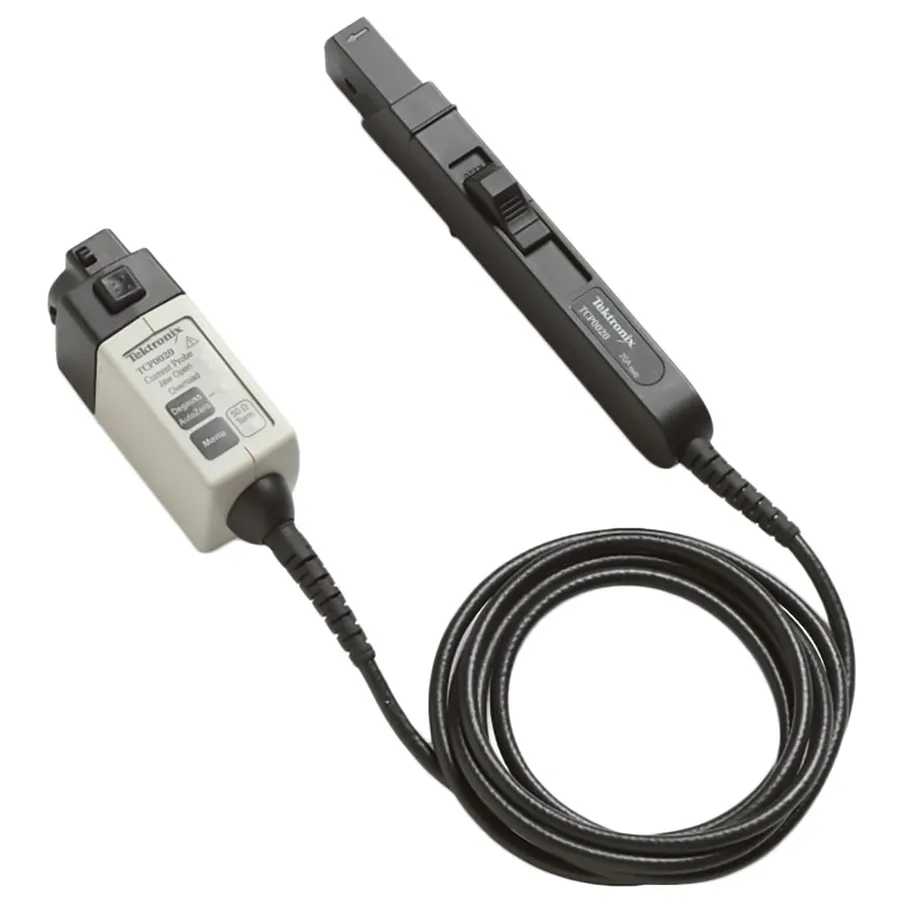

Tektronix TCP0020 Current Probe
Request a quote
Tektronix TCP0020 is an AC/DC current probe with 50 MHz bandwidth, 20 A DC capability, and measurement range from 10 mA to 100 A peak for oscilloscope current analysis.
Product details
| Model | TCP0020 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix TCP0020 is a 20A AC/DC current probe designed for oscilloscope measurements of electrical current. With 50 MHz bandwidth and input termination of 100 kΩ, this probe provides accurate current measurements from 10 mA to 100 A peak pulse levels, suitable for power supplies, semiconductor devices, and motor drives.
Key Features
- AC/DC current measurement capability
- Bandwidth: 50 MHz
- Maximum current: 20 A DC / 20 ARMS / 100 A peak pulse
- Minimum current: 10 mA with excellent accuracy
- Input termination: 100 kΩ
- CAT II rated for safety compliance
Applications
- Power supply current measurement
- Semiconductor device testing
- Electronic ballast analysis
- Industrial and consumer electronics testing
- Mobile communications equipment
- Motor drive and transportation systems
Included Accessories
- Probe ground lead (6 inch length)
- Nylon carrying case
- Instruction manual (English)
Specifications
| Maximum Current | 20 A |
| Input Coupling | AC/DC |
| Bandwidth | 50 MHz |
| Maximum Input Voltage | 150 V |
| Safety Rating | CAT2 |
| Cable Length | 2 m |
| Series | TCP Series |
| Dimensions | 5.8 x 0.6 x 1.2" |
| Minimum Current | 10 mA |
| Operating Temperature Range | 0-50°C |
| Peak Current | 100 A |
| Relative Humidity Range | 5-95% |
| Risetime | 7 ns |
| Warranty | 1 Year |
