Tektronix TAP2500 Active Probe

Overview

The Tektronix TAP2500 is a single-ended active FET probe offering excellent high-speed electrical and mechanical performance for modern digital system designs. With 2.5 GHz bandwidth and exceptionally low input capacitance of 0.8 pF, the TAP2500 is ideal for verification, debug, and characterization of high-speed signals. The compact probe head is specifically designed for probing small geometry circuit elements and SMD components as small as 0.5 mm pitch.

Key Features

• 2.5 GHz probe bandwidth for high-speed signal acquisition
• 0.8 pF input capacitance and 40 kΩ input resistance
• Dynamic range from -4 V to +4 V with -10 V to +10 V DC offset range
• Small compact probe head for probing small geometry circuit elements
• DUT attachment accessories enabling connection to SMDs as small as 0.5 mm pitch
• Direct connection to oscilloscopes with TekVPI probe interface
• Automatic units scaling and readout on oscilloscope display
• Remote GPIB/USB probe control through the oscilloscope

Applications

• Verification, debug, and characterization of high-speed designs
• Signal integrity, jitter, and timing analysis
• Manufacturing engineering and automated test
• Signals with voltage swings up to 8 Vp-p

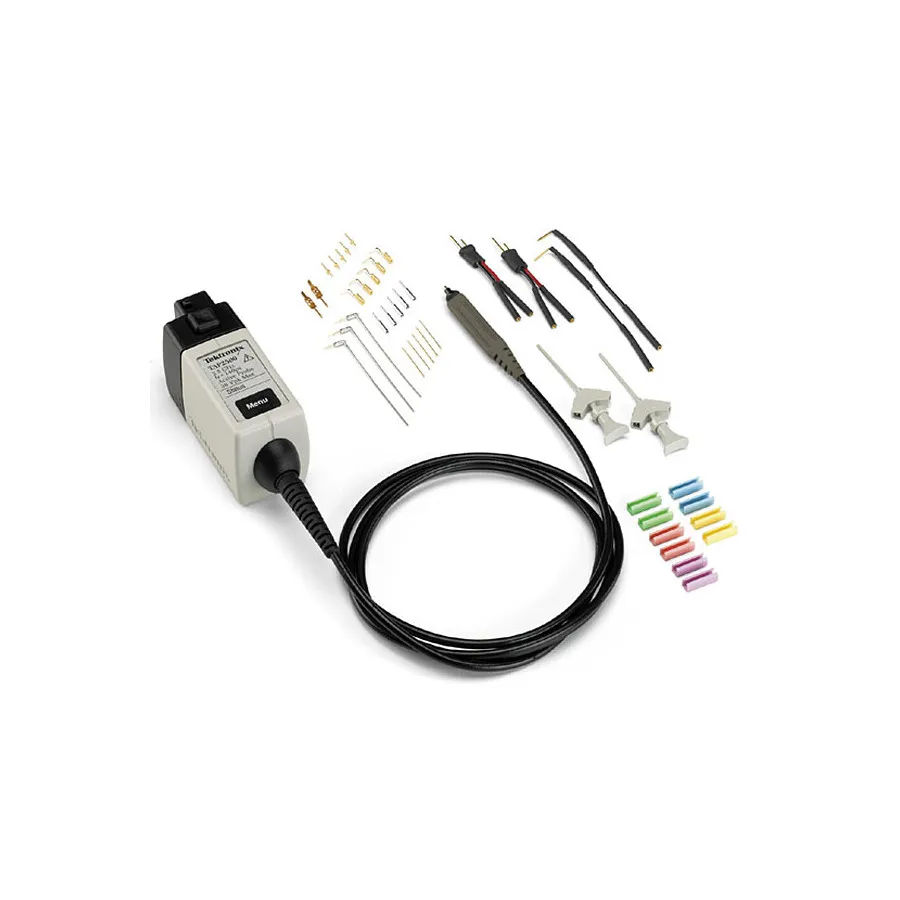

Included Accessories

• Y-lead adapters (2 ea)
• 3-inch ground leads (3 ea)
• Micro circuit test tips (2 ea)
• Customizable ground leads (set of 5)
• Color band kit (5 colored pairs)
• Pogo pin grounds (set of 10)
• Square pin sockets (set of 10)
• Push-in probe tips (set of 10)
• Right-angle adapters (set of 10)
• SureToe adapters (set of 4)
• Antistatic wrist strap (1 ea)
• Nylon carrying case
• Plastic accessory case
• Instruction manual
