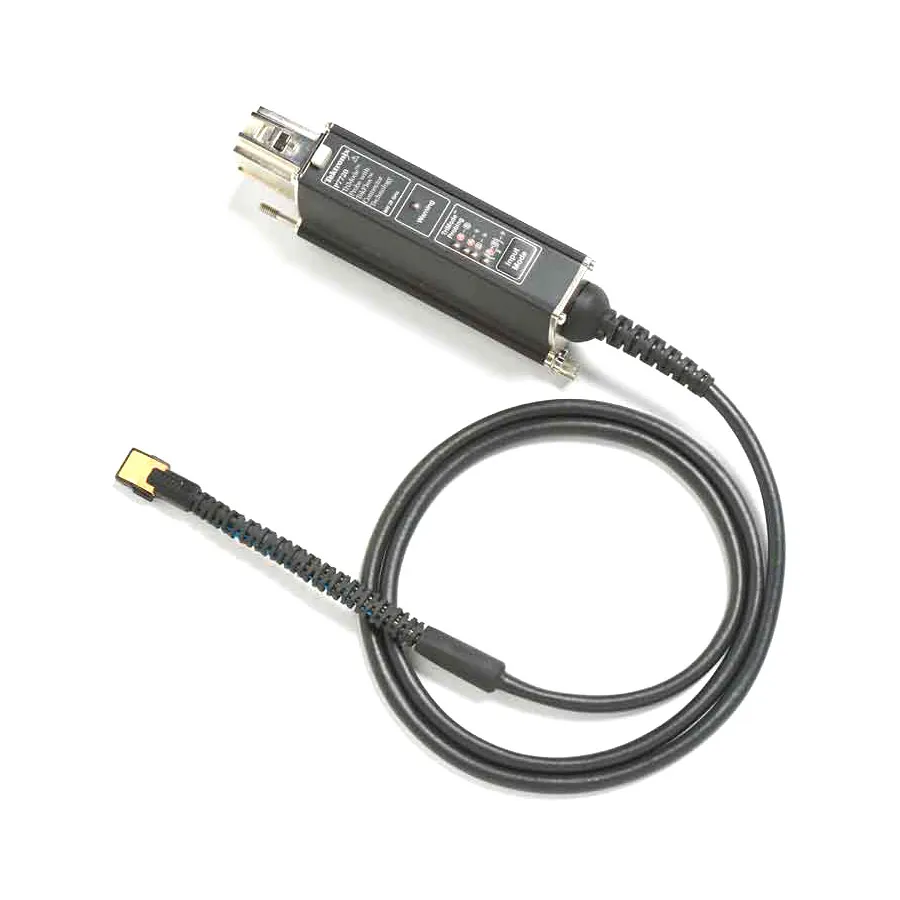

Tektronix P7633 Low Noise TriMode Probe
Request a quote
Tektronix P7633 is a 33 GHz low-noise TriMode oscilloscope probe with differential, single-ended, and common mode measurement capabilities for precision signal analysis.
Product details
| Model | P7633 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P7633 is a 33 GHz bandwidth TriMode oscilloscope probe for low-noise, high-sensitivity measurements. It enables differential, single-ended, and common mode measurements without probe tip adjustments, suited for precision characterization of high-speed digital and analog circuits.
Key Features
- 33 GHz bandwidth to probe tip
- TriMode™ design — supports differential, single-ended, and common mode measurement in one configuration
- Low probe and system noise for high-sensitivity signal measurements
- Remote head design positioning amplifier near circuit under test
- Automatic adapter ID — detects probe tips and applies DSP correction filters for accurate frequency response
- TekConnect® interface for scope and probe control
- Includes 2.92mm and SMP coaxial adapters
- Compatible with P7500 Series TriMode solder-in probe tips
Applications
- MIPI M-PHY serial interface testing
- PCI Express (PCIe) signal measurement
- Serial ATA (SATA) characterization
- Serial Attached SCSI (SAS) testing
- Fibre Channel protocol analysis
- HDMI signal measurements
Specifications
| Bandwidth | 33 GHz |
| Attenuation | 0.25X-20X |
| Maximum Input Voltage | 5 V |
| Input Impedance | 50-225 Ω |
| Interface | TekConnect |
| Series | P7600 Series |
| Type | Differential Probe |
