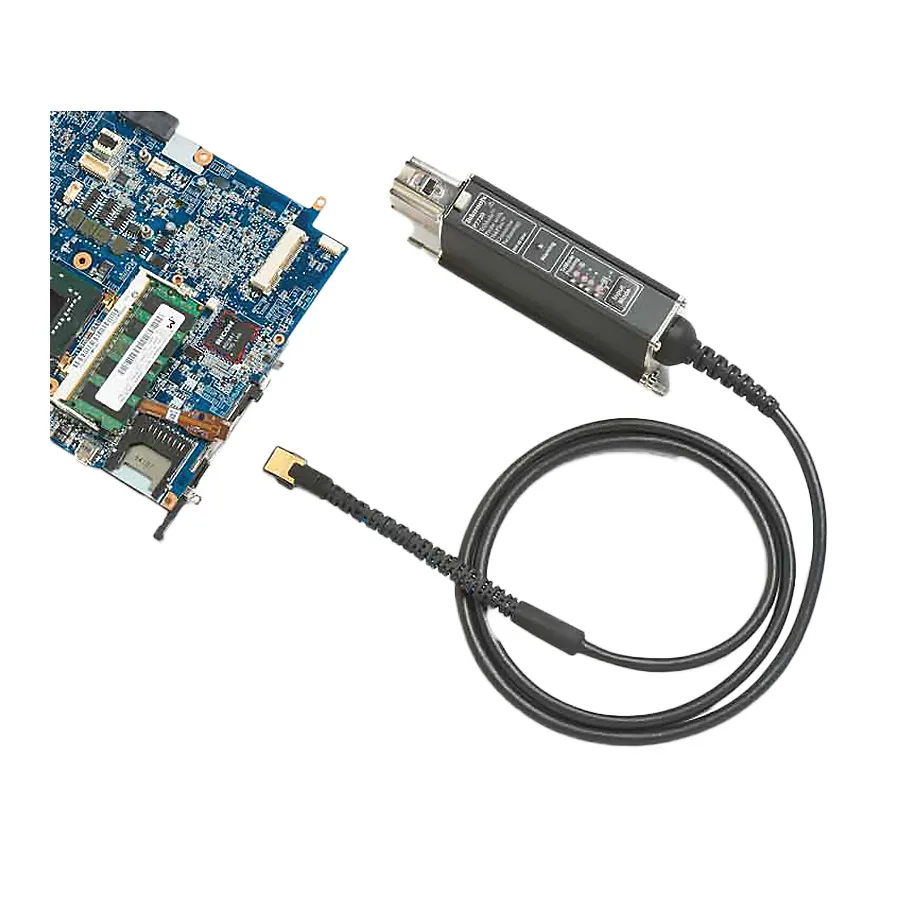

Tektronix P7508 TriMode Differential Probe
Request a quote
Tektronix P7508 is an 8 GHz TriMode differential probe with 5X or 12.5X selectable attenuation and TekConnect interface, enabling differential, single-ended, and common-mode measurements.
Product details
| Model | P7508 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P7508 is an 8 GHz TriMode differential probe designed for high-density probing on Tektronix oscilloscopes. TriMode technology enables one probe setup to perform differential, single-ended, and common-mode measurements without adjusting probe tip connections, improving productivity and measurement efficiency.
Key Features
- 8 GHz bandwidth
- TriMode measurement capability: differential, single-ended, and common-mode
- 5X or 12.5X switchable attenuation for extended dynamic range
- 100k ohms DC input resistance (differential)
- ±15 V nondestructive input range
- TekConnect interface for oscilloscope control
- Multiple probe tip options for various connectivity needs
- Small form factor for high-density probing
- Compatible with DPO/DSA/MSO70000 and TDS6000B/C series oscilloscopes
Probe Tip Options
- TriMode Performance Solder Tip: Up to 25 GHz bandwidth
- TriMode Long Reach Solder Tip: Up to 20 GHz bandwidth
- TriMode Resistor Solder Tip: Up to 18 GHz bandwidth
- TriMode Extended-resistor Solder Tip: Up to 7 GHz bandwidth
- TriMode Micro-coax Tip: Up to 4 GHz bandwidth
- TriMode High-temperature Tip: Up to 10 GHz bandwidth with DSP
- Damped Wire Tip: Up to 8 GHz bandwidth
- Precision Differential Probing Module: Up to 18 GHz bandwidth
Applications
- PCI Express signal integrity testing
- Serial ATA measurement
- DDR2/3/4 memory testing
- USB signal analysis
Specifications
| Bandwidth | 8 GHz |
| Attenuation | 5X, 12.5X |
| Maximum Input Voltage | 15 V |
| Input Impedance | 100 kΩ |
| Interface | TekConnect |
| Cable Length | 1.3 m |
| Series | P7500 Series |
| Risetime | 55 ps |
| Type | Differential Probe |
