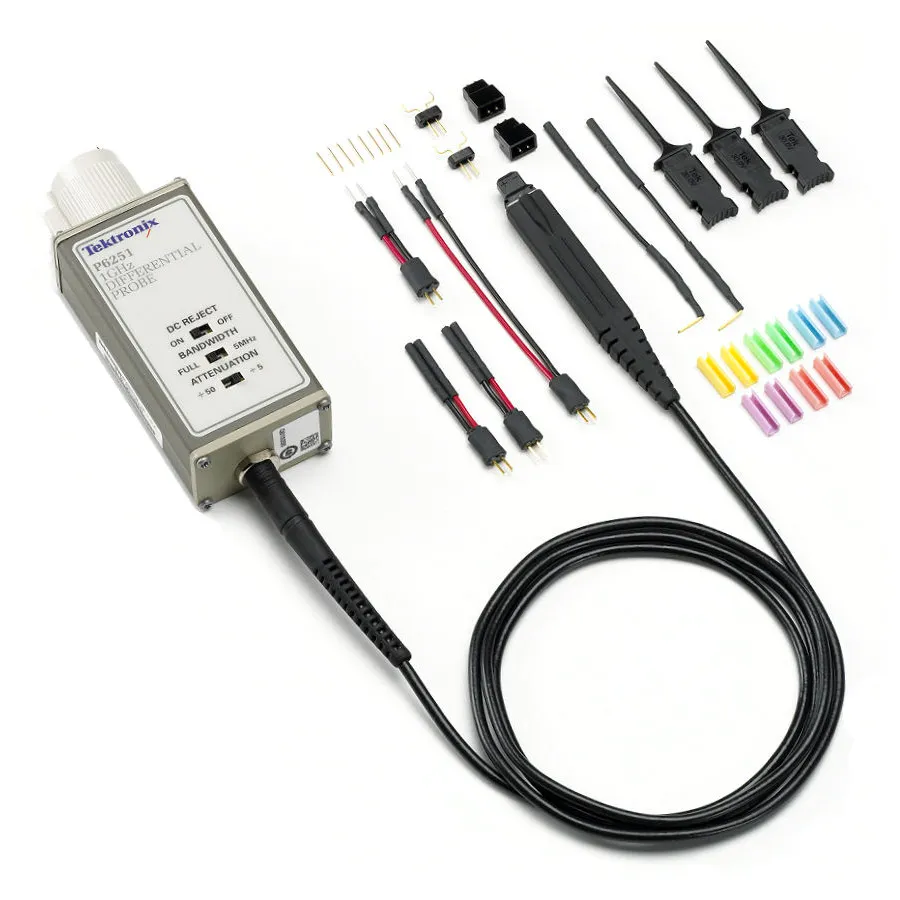

Tektronix P6251 High Voltage Differential Probe
Request a quote
Tektronix P6251 is a 1 GHz high-voltage differential probe with selectable bandwidth filters and compact design, ideal for SMPS, CAN/LIN bus, and high-speed digital systems.
Product details
| Model | P6251 |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P6251 is a high-voltage differential probe designed for demanding applications in switch-mode power supplies, CAN/LIN bus analysis, and high-speed digital system design. With 1 GHz bandwidth and excellent common mode rejection, it delivers reliable measurements of differential signals in complex environments. The compact probe head accommodates small geometry circuit elements, while the array of connection options provides flexibility for various test scenarios.
Key Features
- 1 GHz probe bandwidth
- 18 dB CMRR at 250 MHz with 50X attenuation
- Switchable bandwidth limiting filters: 100 Hz, 10 kHz, 1 MHz, and Full Bandwidth
- Compact probe head for small geometry circuits
- Multiple probe tip options: straight pin, square pin, solder-down, and variable pitch
- TekProbe interface with automatic unit scaling
- Dedicated probe menu on oscilloscope display for setup control
Applications
- Switch-mode power supply (SMPS) design and troubleshooting
- CAN/LIN bus analysis
- High-speed digital circuit design and verification
Specifications
| Bandwidth | 1 GHz |
| Attenuation | 5X, 50X |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 42 V |
| Input Impedance | 1 MΩ |
| Interface | TekProbe BNC |
| Cable Length | 1.2 m |
| Operating Temperature Range | 0 to 40°C |
| Risetime | 350 ps |
| Type | Differential Probe |
