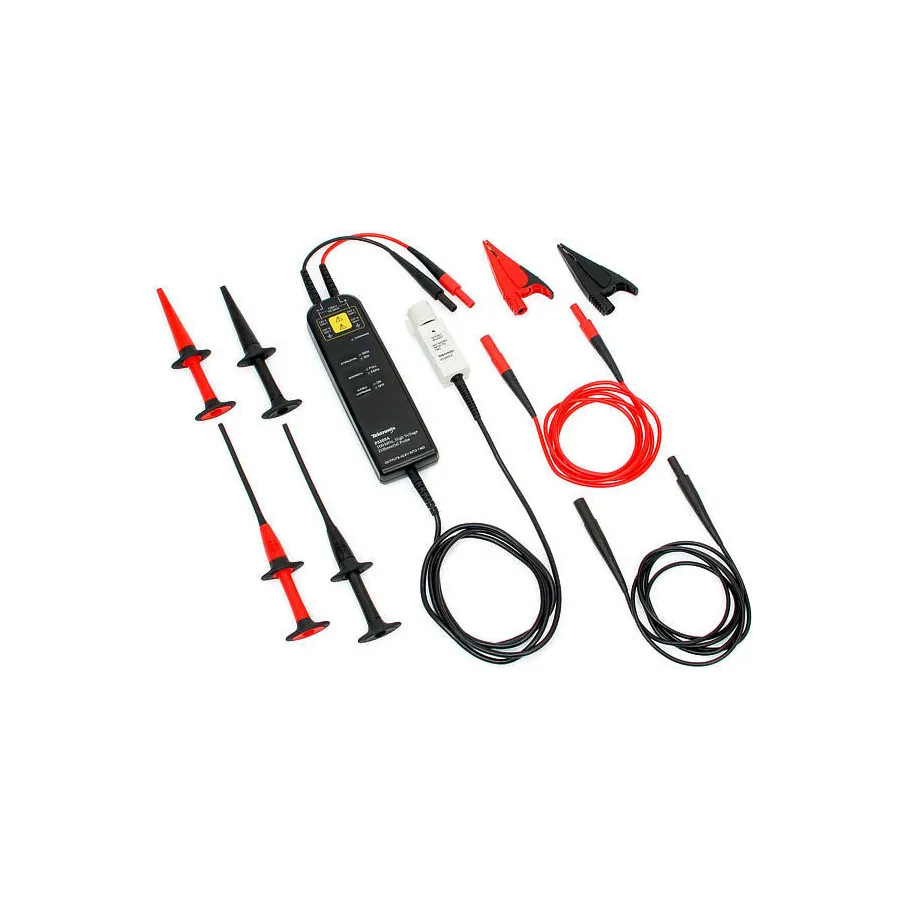

Tektronix P5200A High-Voltage Differential Probe
Request a quote
Tektronix P5200A — an active differential oscilloscope probe rated for 1.3 kV differential and 1 kV to ground, with 50 MHz bandwidth for floating circuit measurements.
Product details
| Model | P5200A |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P5200A is an active differential probe that enables safe measurement of floating circuits without grounding the oscilloscope. It converts floating signals to low-voltage ground-referenced signals for display on any grounded oscilloscope. With a 1.3 kV differential rating, 1 kV to ground per channel, and 50 MHz bandwidth, it provides excellent signal fidelity and safety for high-voltage measurements.
Key Features
- 1.3 kV differential / 1 kV to ground (each channel)
- 50 MHz bandwidth
- Switchable 50X and 500X attenuation
- UL Certified 3111-1 and IEC 1010 certified
- TekProbe interface for automatic scale communication with compatible oscilloscopes
- 9 VDC wall adapter powered
- Excellent signal fidelity for safe floating measurements
- Easy connection to ICs and bus bars
Applications
- Floating circuit measurements
- Integrated circuit (IC) testing
- Bus bar measurements
- High-voltage signal analysis without oscilloscope grounding
- Power electronics and drive circuit analysis
- Motor control and switching circuit analysis
Specifications
| Bandwidth | 50 MHz |
| Maximum Input Voltage | 1000 V |
| Type | Differential Probe |
| Attenuation | 50X, 500X |
| Input Capacitance | 2 pF |
| Maximum Input Voltage | 1300 V |
| Input Impedance | 10 MΩ |
| Interface | BNC |
| Cable Length | 1.5 m |
| Series | P52xxA Series |
| Dimensions | 12.50 x 5.25 x 14.75" |
| Lead Length | 9 m |
| Operating Temperature Range | 0-40°C |
| Risetime | 7 ns |
| Warranty | 1 Year |
