Tektronix P5100A High-Voltage Passive Probe
Request a quote
Tektronix P5100A — a high-voltage passive oscilloscope probe rated for 2.5 kV, featuring 500 MHz bandwidth, 100X attenuation, and low capacitance for RF applications.
Product details
| Model | P5100A |
| Manufacturer | Tektronix |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Tektronix P5100A is a high-voltage passive oscilloscope probe designed for low input capacitance measurements at higher frequencies. With a 2.5 kV rating and 500 MHz bandwidth, it is well-suited for power supply design, motor drive analysis, and other applications requiring high-voltage measurements with excellent signal fidelity.
Key Features
- DC to 500 MHz bandwidth
- 2.5 kV peak / 1 kV RMS CAT II rated
- 100X attenuation with readout coding
- Low input capacitance (2.5 pF nominal)
- Compensable to match 7-30 pF input oscilloscope capacitances
- Variety of screw-on accessories for flexible connections
Applications
- Power supply design and analysis
- Motor drive design and testing
- Electronic ballast circuits
- Power semiconductor measurements
- Switch-mode control circuits
- UPS systems
- Power converters

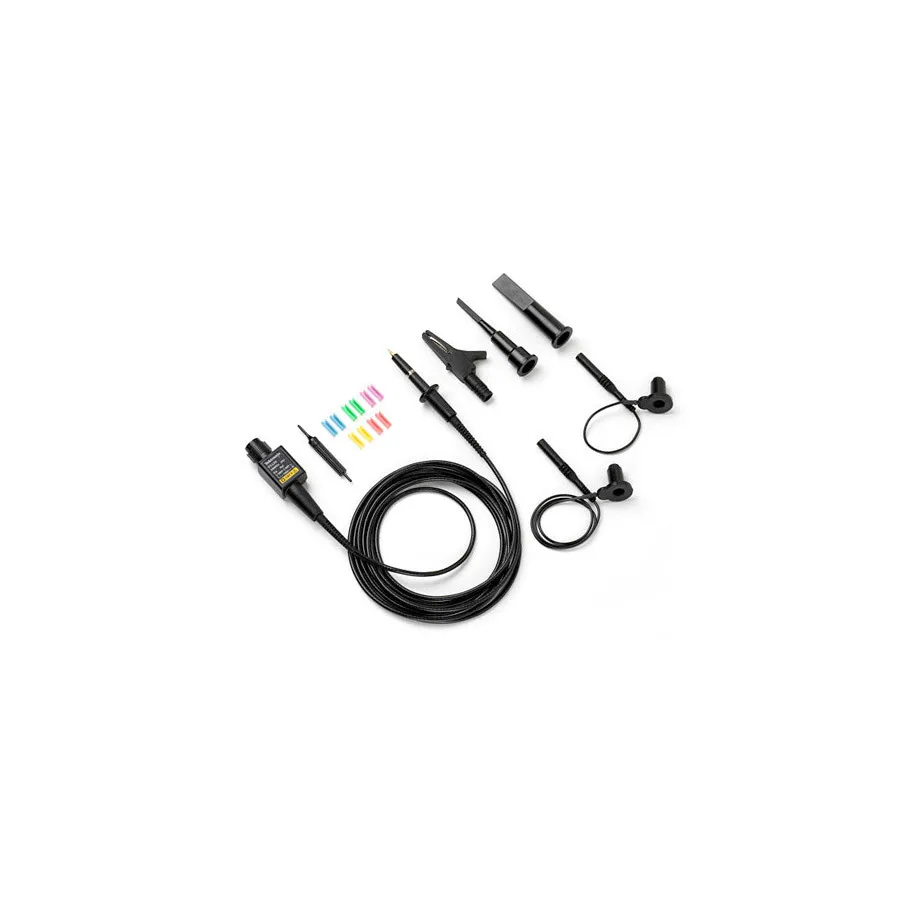

Included Accessories
- Large hook tip
- Small hook tip
- 6 inch ground lead
- 18 inch ground lead
- Ground spring
- Crocodile clip
- Adjustment tool
- Color bands
- Instruction manual
Specifications
| Bandwidth | 500 MHz |
| Attenuation | 100X |
| Input Capacitance | 2.5 pF |
| Maximum Input Voltage | 2.5 kV |
| Cable Length | 2 m |
| Series | P-Series |
| Dimensions | 2.25 x 4 x 12" |
| Input Impedance | 40 MΩ |
| Risetime | 0.7 ns |
| Series Compatibility | 2 Series MSO |
| Type | Passive Probe |
