Keysight N2796A Active Oscilloscope Probe
Request a quote
Keysight N2796A is a 2 GHz active probe with 1 MΩ input impedance and 1 pF capacitance, ideal for low-loading measurements in digital system design and characterization.
Product details
| Model | N2796A |
| Manufacturer | Keysight |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Keysight N2796A is a single-ended active probe designed for high-speed digital system measurements. With 2 GHz bandwidth and an ultra-low loading design featuring 1 MΩ input resistance and 1 pF input capacitance, it provides superior signal fidelity for logic voltage measurements. The probe integrates directly with Keysight's AutoProbe interface, requiring no external power supply.
Key Features
- 2 GHz bandwidth (-3dB)
- 1 MΩ input resistance and 1 pF input capacitance for minimal circuit loading
- Wide input dynamic range (±8V) and offset range (±12V)
- Built-in white LED headlight for improved visibility
- AutoProbe interface integration for plug-and-play operation
- Multiple probe tip accessories included
Applications
- Digital system design and characterization
- Component testing and validation
- Educational research and measurements
- General-purpose high-speed signal probing
Included Accessories

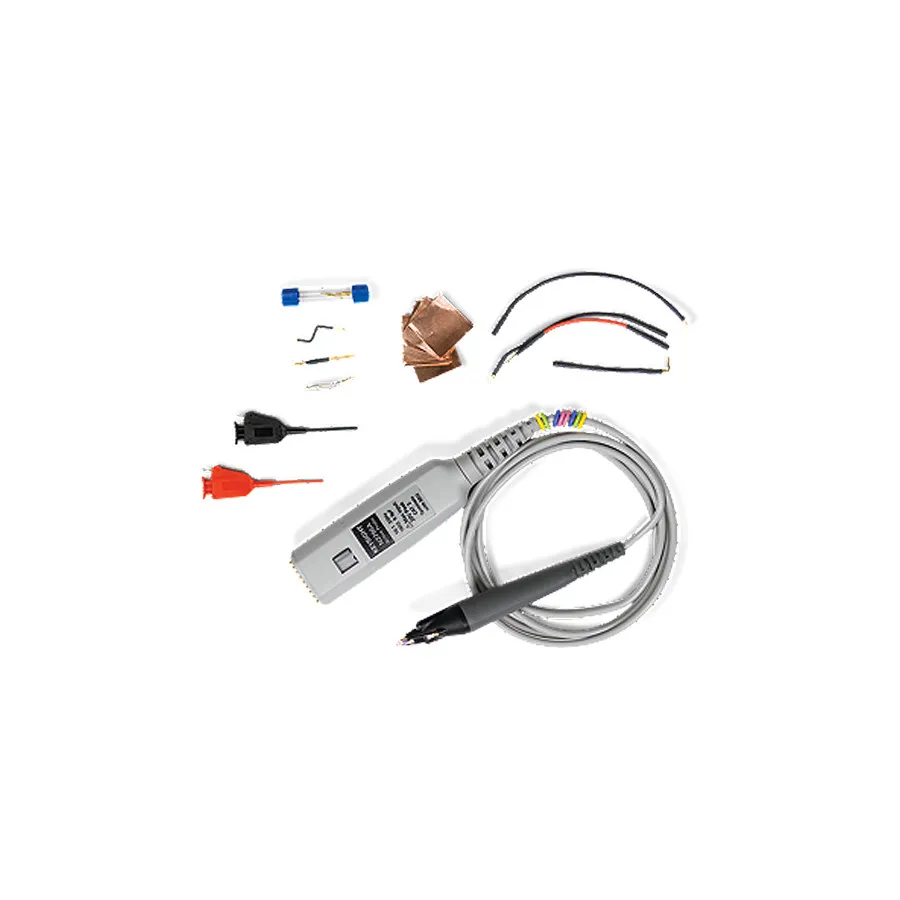

- Various probe tip assemblies
- Adapter connectors for circuit connections
- Color-coded identification rings
Specifications
| Bandwidth | 2 GHz |
| Attenuation | 10X |
| Input Capacitance | 1 pF |
| Maximum Input Voltage | 12 V |
| Input Impedance | 1 MΩ |
| Interface | AutoProbe |
| Cable Length | 1.3 m |
| Series | N2790A Series |
| Operating Temperature Range | 0 to 50°C |
| Risetime | 175 ps |
| Series Compatibility | 3000/3000T X Series, 4000 X Series, 6000 X Series, 5000 Series, 6000 Series, 7000 Series, Infiniium 9000 Series, S-Series, 90000A Series |
| Type | Active Probe |
