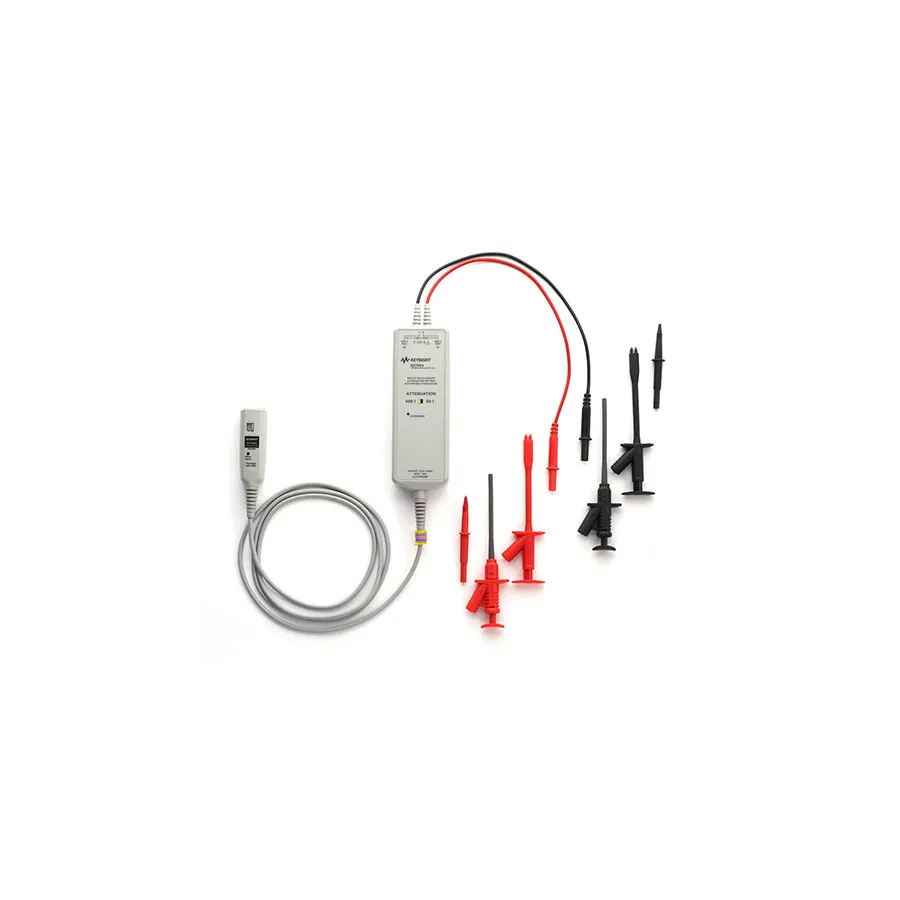

Keysight N2790A High-Voltage Differential Probe
Keysight N2790A 100-MHz high-voltage differential probe rated for 1,400 V with selectable 50:1 or 500:1 attenuation and >50 dB CMRR.
Product details
| Model | N2790A |
| Manufacturer | Keysight |
| Category | Oscilloscope Probes |
| Availability | Made to order |
Description
Overview
The Keysight N2790A is a 100-MHz high-voltage differential probe designed for safe and accurate floating measurements on oscilloscopes. Rated to measure differential voltage up to 1,400 VDC with peak AC and common-mode voltage up to 1,000 V, it enables conventional earth-grounded Keysight oscilloscopes to be used for floating signal measurements. The probe features excellent CMRR (Common Mode Rejection Ratio) greater than 50 dB at 1 MHz and can accurately capture fast transient edges as quick as 3.5 nanoseconds, making it ideal for modern switching power supply measurements.
The N2790A integrates the AutoProbe interface, obtaining power directly from compatible Keysight oscilloscopes without requiring a separate power supply. An overrange indicator alerts the user when probe input exceeds its dynamic range. Optional extreme temperature extension kits (N7013A/N7014A) allow operation from -40°C to +85°C for environmental chamber testing.
Key Features
- 100-MHz bandwidth for accurate fast transient capture
- User-selectable attenuation of 50:1 or 500:1
- Rated for 1,400 VDC + peak AC differential measurement with >50 dB CMRR
- Overrange indicator alerts when input exceeds dynamic range
- AutoProbe interface with 1 MΩ input impedance and direct oscilloscope power
- Can measure up to 3.5 nanosecond transient edges
- Optional extreme temperature extension kit for -40°C to +85°C operation
Applications
- Floating signal measurements in switching power supplies
- High-voltage differential signal measurement and debugging
- Fast transient edge capture in modern electronics
- Testing in environmental chambers at extreme temperatures
Included Accessories
- Two browser tips
- Two retractable hook tips
- Two alligator clips
Specifications
| Bandwidth | 100 MHz |
| Attenuation | 50X, 500X |
| Input Capacitance | 3.5 pF |
| Maximum Input Voltage | 1400 V |
| Input Impedance | 8 MΩ |
| Interface | AutoProbe |
| Cable Length | 70 cm |
| Series | N2790A Series |
| Operating Temperature Range | -10 to 50°C |
| Risetime | 3.5 ns |
| Series Compatibility | 3000 X Series, 4000 X Series, 5000 Series, 6000 Series, 7000 Series, S Series, V Series, Z Series, 90000 X Series, 90000 Q Series, 8000 Series, 54830 Series, 9000 Series. |
| Type | Differential Probe |
